Home-Cables & adapters- LAN cables - UPC-6004SE-SOL

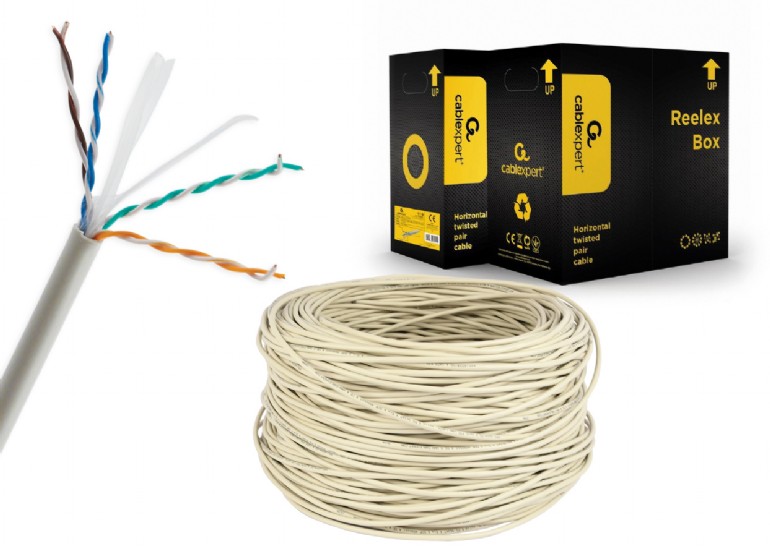

UTP unshielded LAN cable with solid wiresHigh quality CCA conductorsCategory 6
Unshielded twisted pair (UTP) LAN cableCategory 6Conductor material: AWG24 solid CCA (30%)Length: 305 mPackage: rollColor: greyConductor resistance (max): 250 ohm/1000m Insulation resistance (min): 5M ohm/km Pair-to-Ground capacitance: < 330PF / 100m Characteristic impedance: < 100Om (+/- 15) Transport and storage temperature: 0 - 60 degrees Operating temperature: -20 - 70 degrees Working distance: <50m
certificate Fluke test report, 2023, October (335 kb)
certificate Fluke test report, 2023, June (290 kb)
certificate Fluke test report, 2023, march (403 kb)
Declaration of performance (pdf file)
hi-res photo UPC-6004SE-SO series (148 kb)

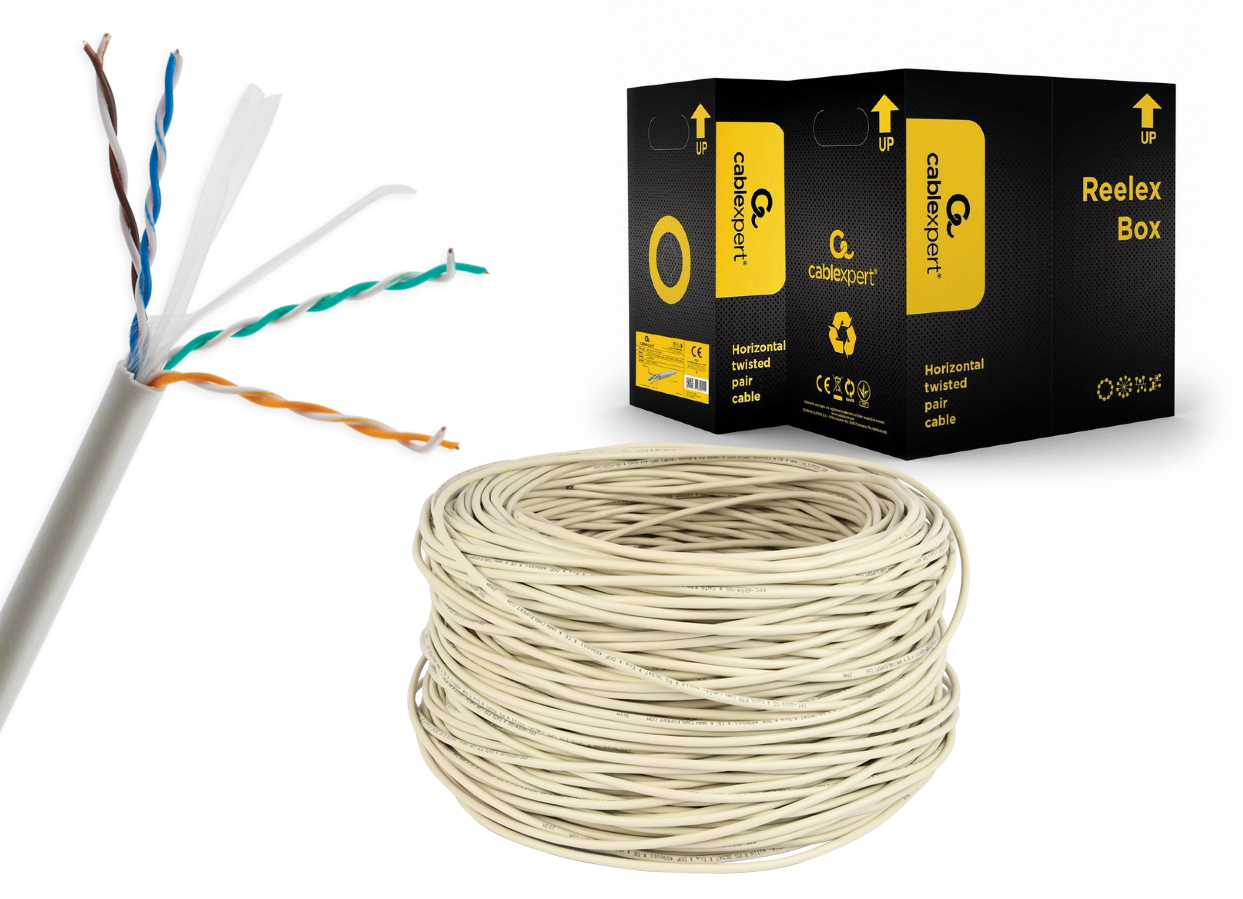

website image UPC-6004SE-SO series (55 kb)
website image (503 kb)
website image section view (87 kb)

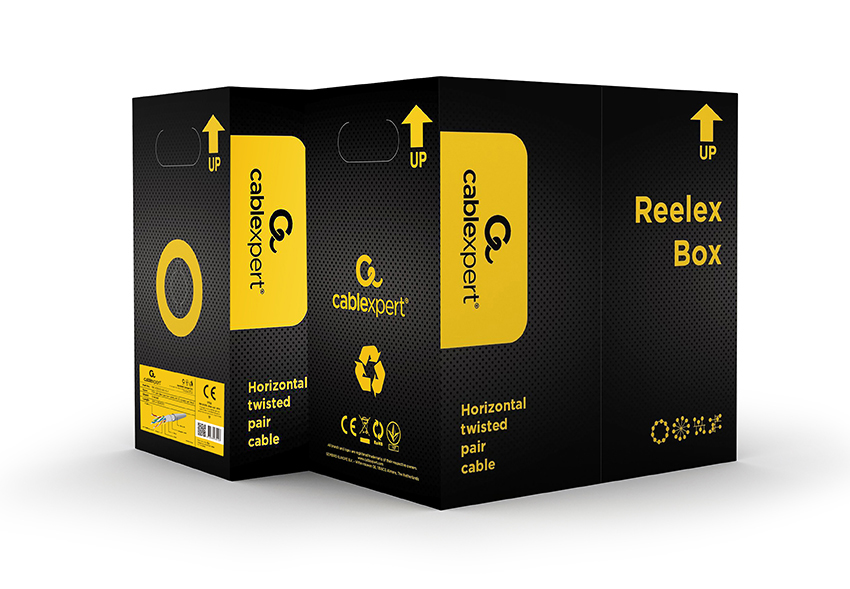

web package image (265 kb)
drawing 2016 (111 kb)
