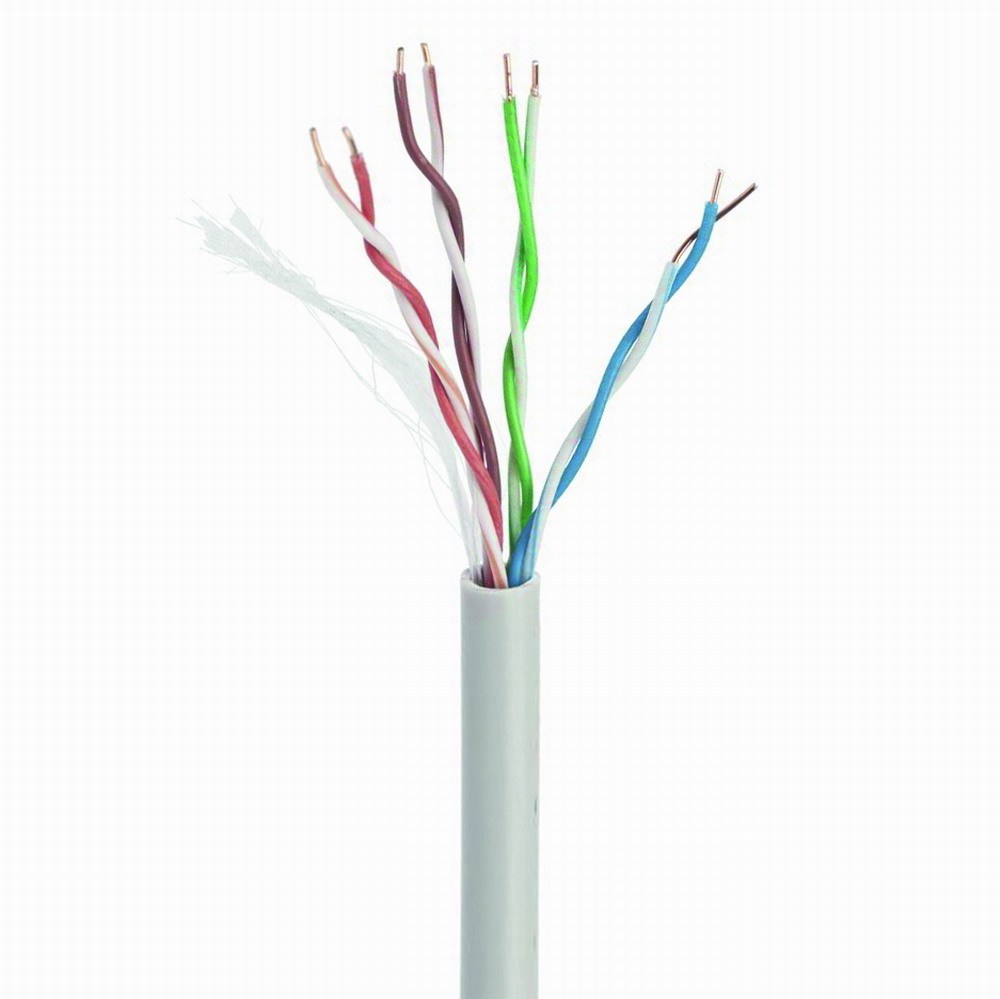

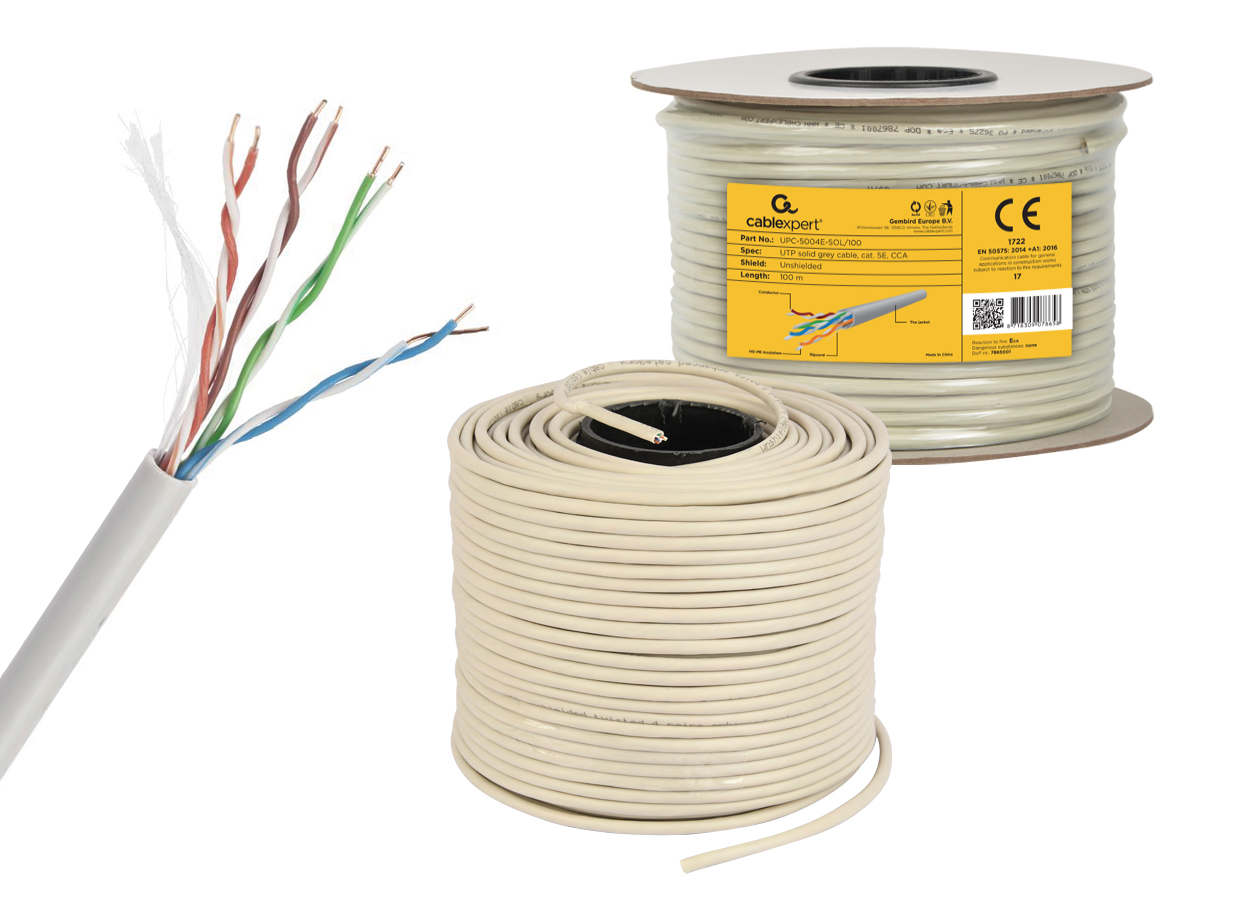

CAT5e UTP LAN cable (premium CCA), solid, 100 m

UPC-5004E-SOL/100

CAT5e UTP LAN cable (premium CCA), solid, 100 m

UPC-5004E-SOL/100

UTP unshielded LAN cable with solid wires
High quality CCA conductors
Category 5E

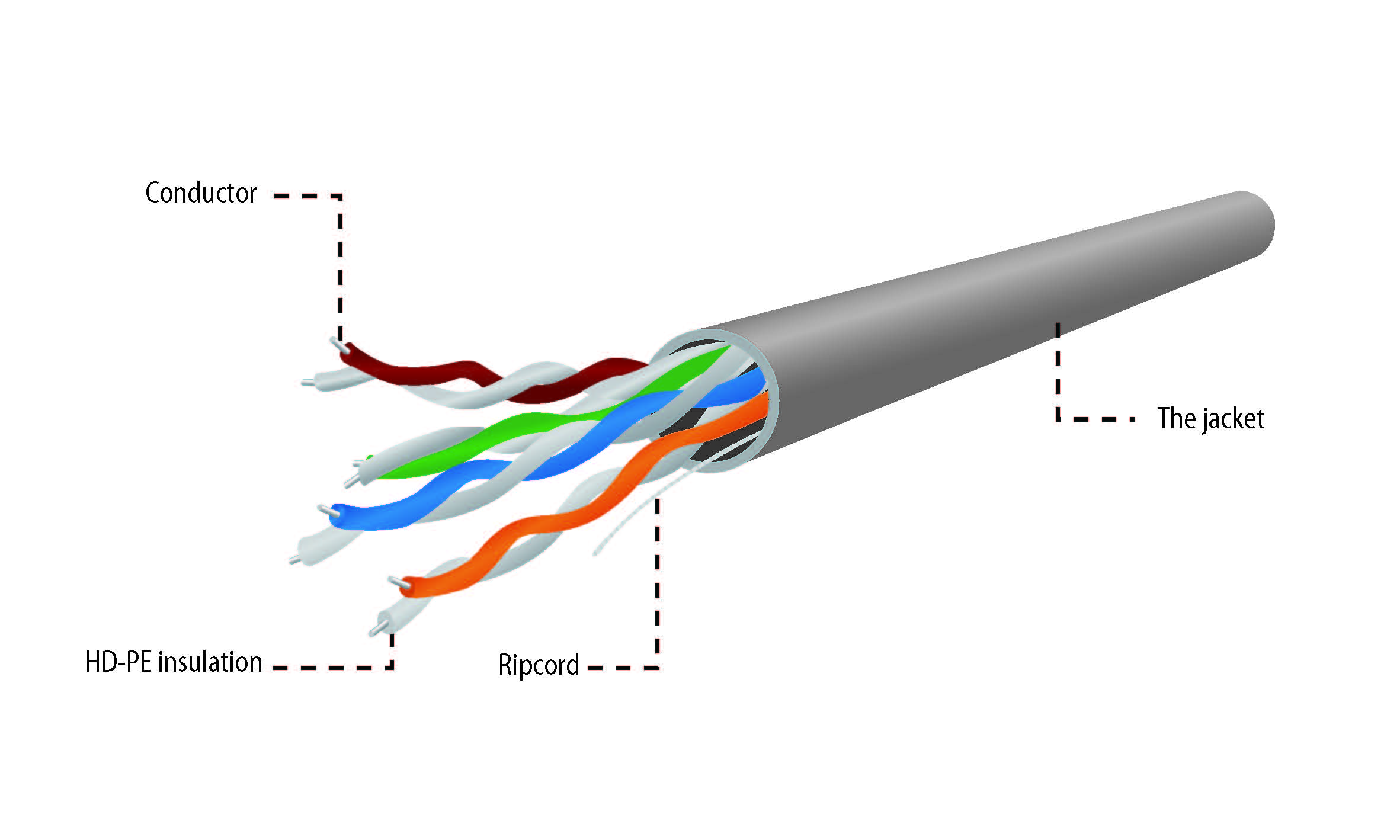

Unshielded twisted pair (UTP) LAN cable
Category 5E
Conductor material: AWG24 solid CCA (30%)
Length: 100 m (328 ft)

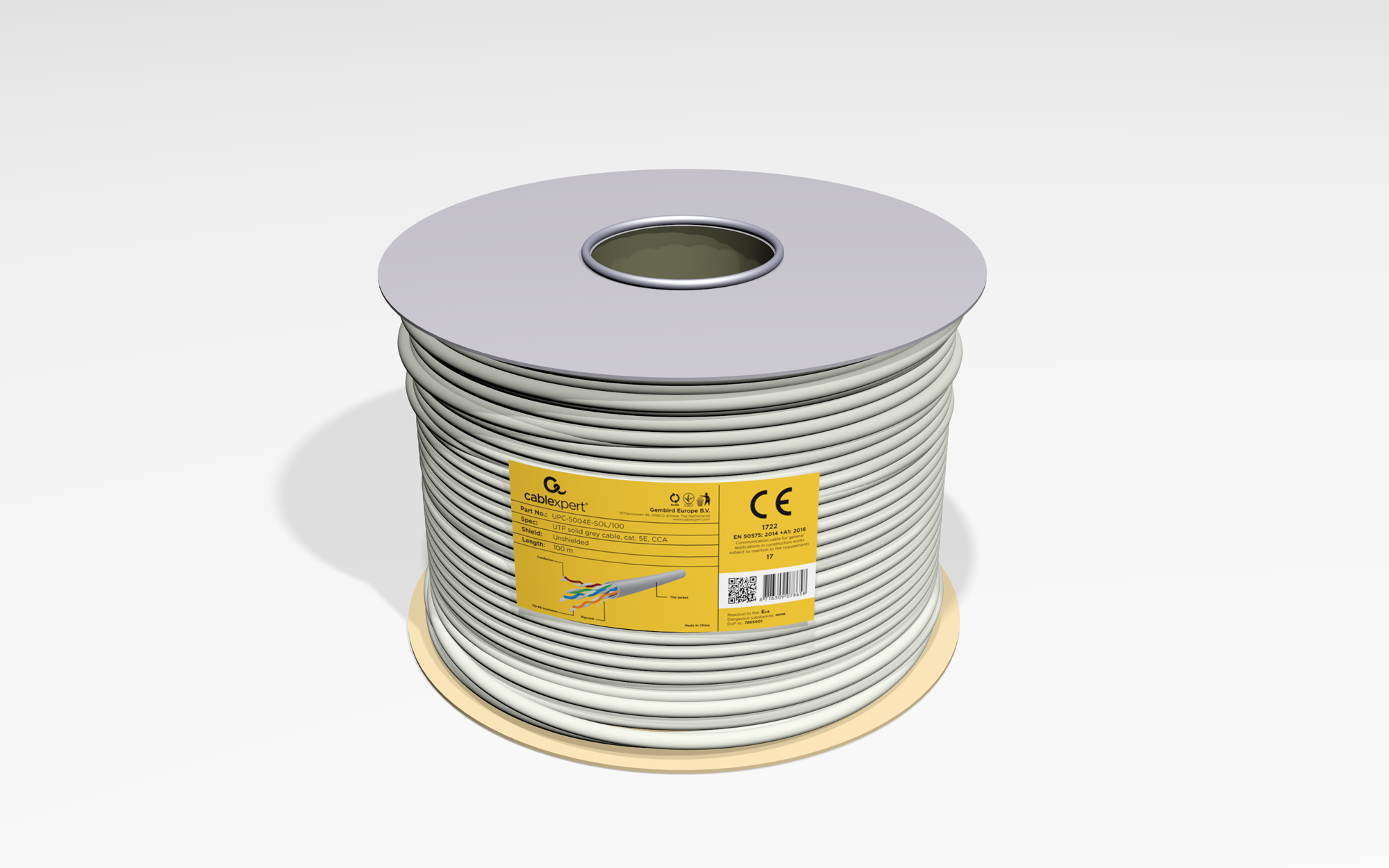

Package: roll
Color: grey
Conductor resistance (max): 250 ohm/1000m
Insulation resistance (min): 5M ohm/km
Pair-to-Ground capacitance: < 330PF / 100m
Characteristic impedance: < 100Ohm (+/- 15)
Transport and storage temperature: 0 - 60 degrees
Operating temperature: -20 - 70 degrees
Working distance: <50m

Packing details
Q'ty in crtn, pcs2
Crtn volume, CUM0.0148995
Crtn weight, kgs5
Individual package size LxWxH:200x200x150 mm
Carton size LxWxH:420x215x165 mm
Country of originCN
Barcode8716309078658
Customs code8544492000
Packagingcolor box

Trade Mark

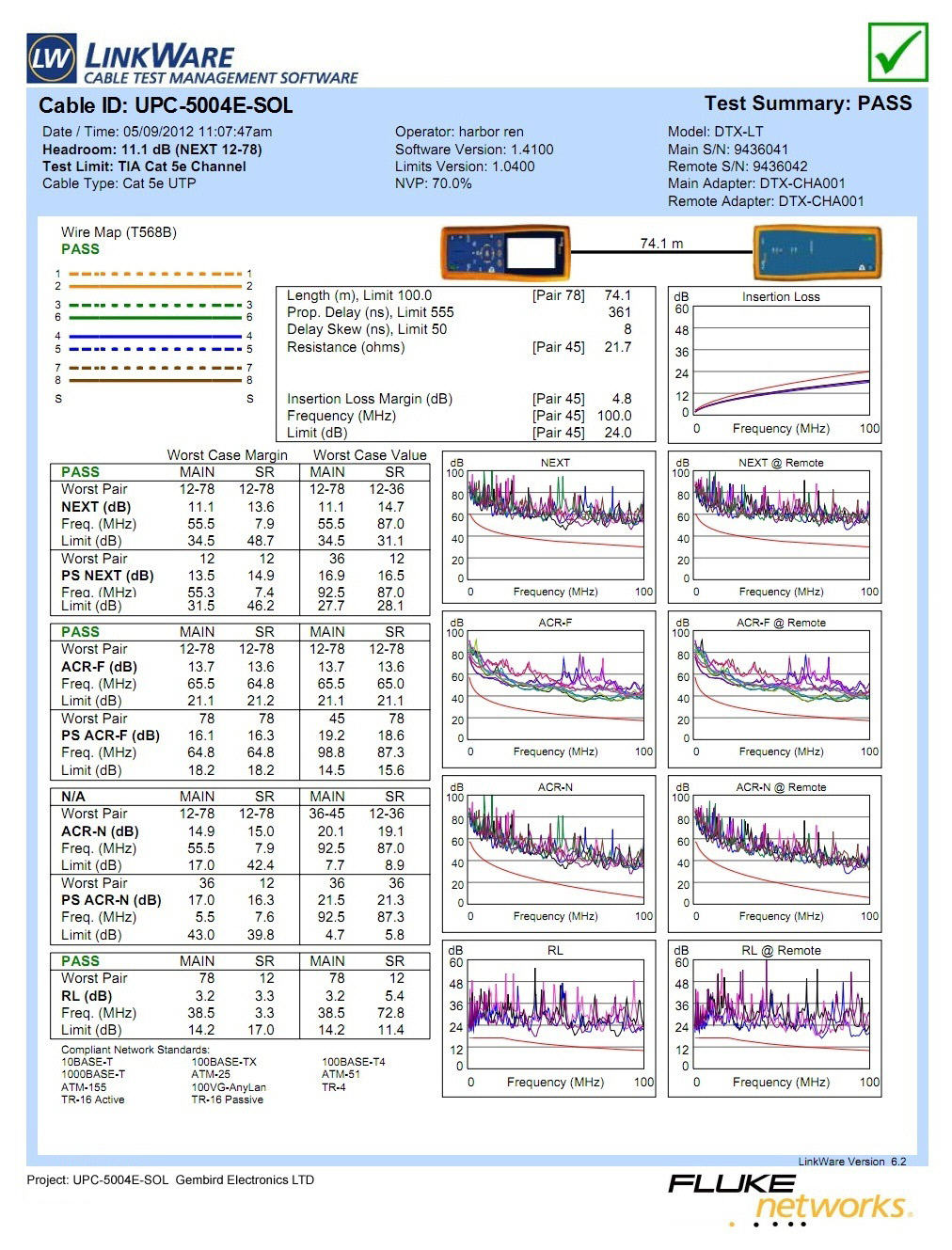

Product information sheet
