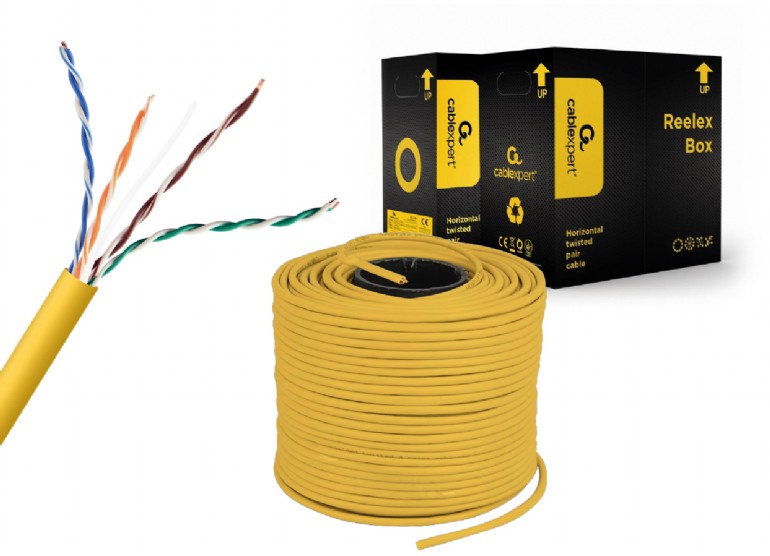

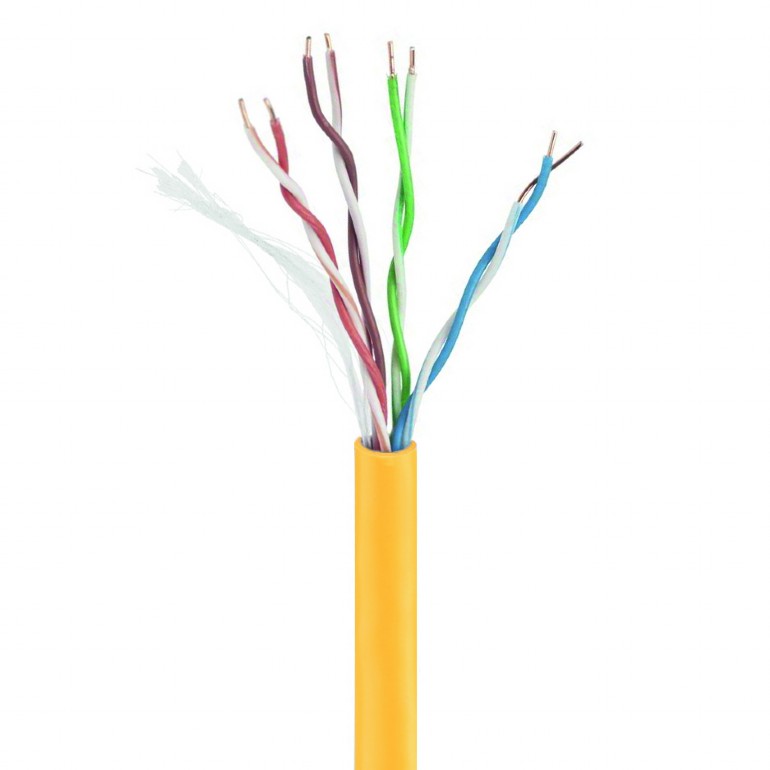

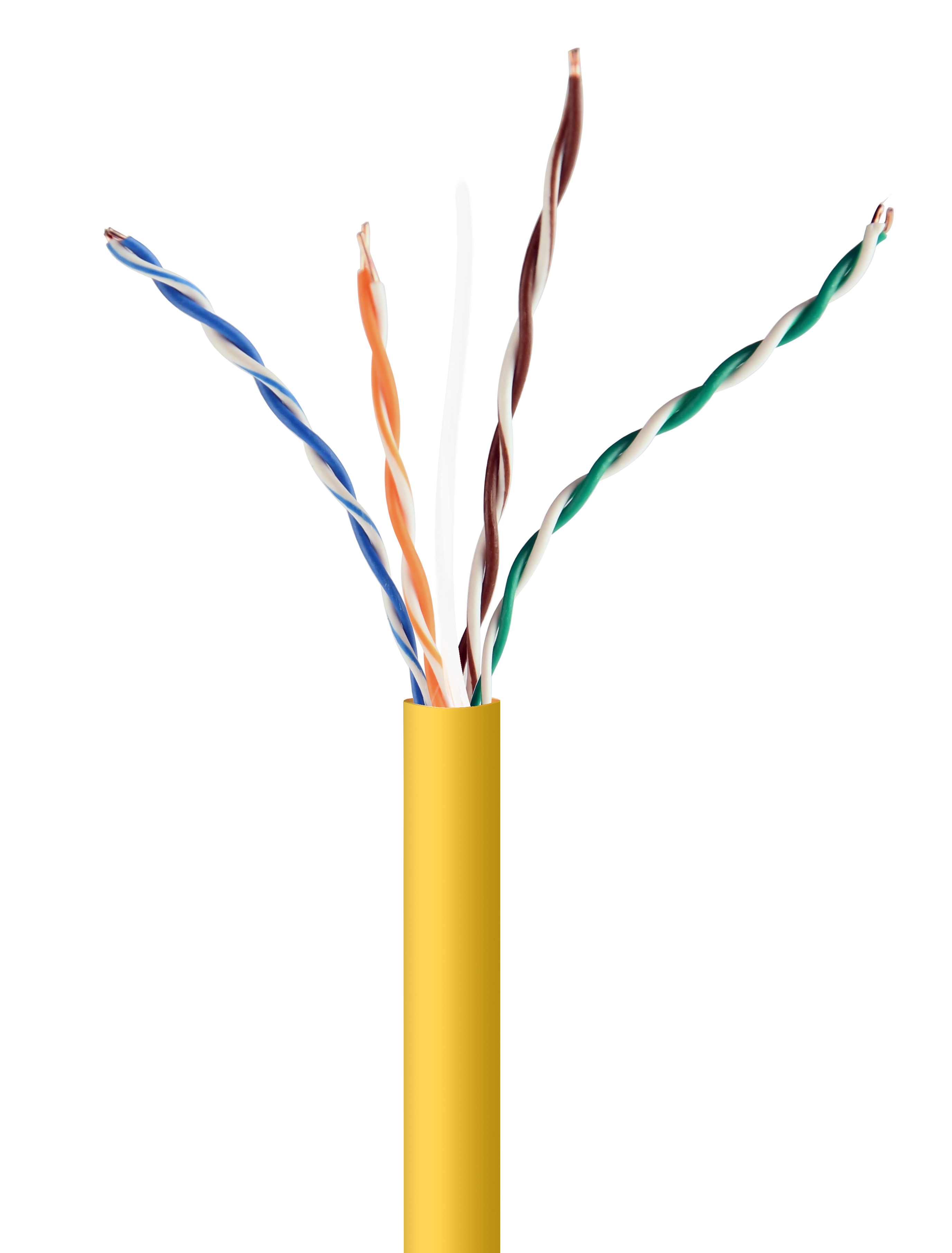

CAT5e UTP LAN cable (CCA), solid, 1000 ft, yellow

UPC-5004E-SOL-Y

CAT5e UTP LAN cable (CCA), solid, 1000 ft, yellow

UPC-5004E-SOL-Y

UTP unshielded LAN cable with solid wires
CCA conductors
Category 5E

Unshielded twisted pair (UTP) LAN cable
Category 5E
Conductor material: AWG24 solid CCA
Length: 1000 ft (305 m)

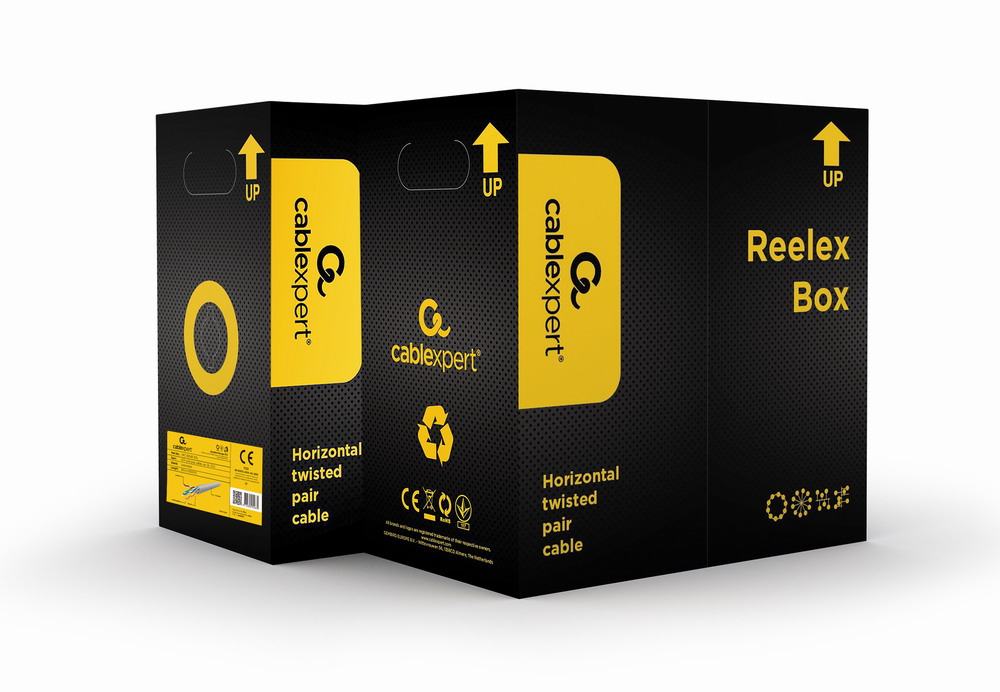

Package: Reelex box
Color: yellow
Conductor resistance (max): 250 ohm/1000m
Insulation resistance (min): 5M ohm/km
Pair-to-Ground capacitance: < 330PF / 100m
Characteristic impedance: < 100Ohm (+/- 15)
Transport and storage temperature: 0 - 60 degrees
Operating temperature: -20 - 70 degrees
Working distance: <50m

Packing details
Q'ty in crtn, pcs2
Crtn volume, CUM0.05885625
Crtn weight, kgs14.04
Individual package size LxWxH:350x200x350 mm
Carton size LxWxH:430x365x375 mm
Country of originCN
Barcode8716309123952
Customs code8544492000
PackagingReelex box
