M.2 SSD adapter PCI-Express add-on card, with extra low-profile bracket

PEX-M2-01

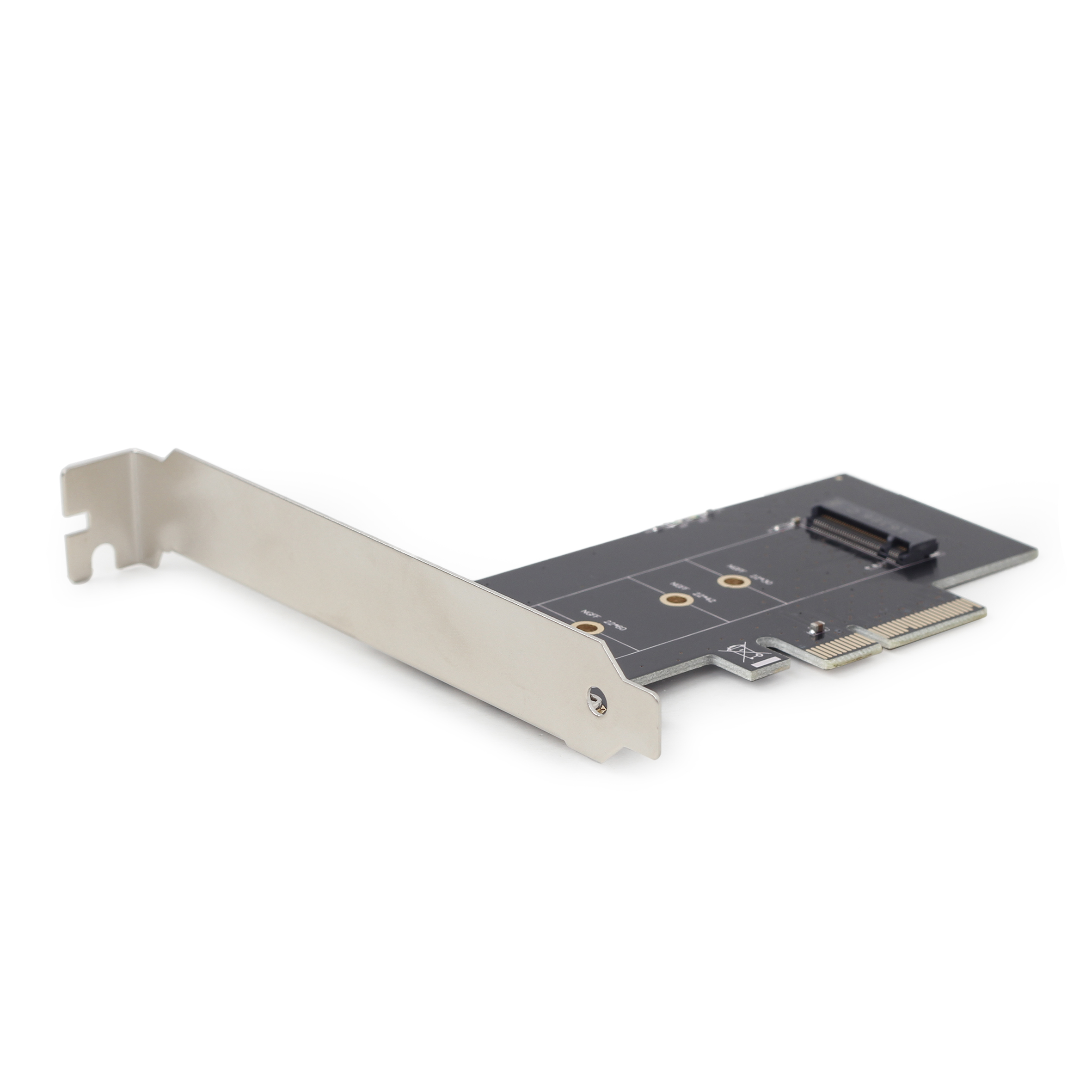

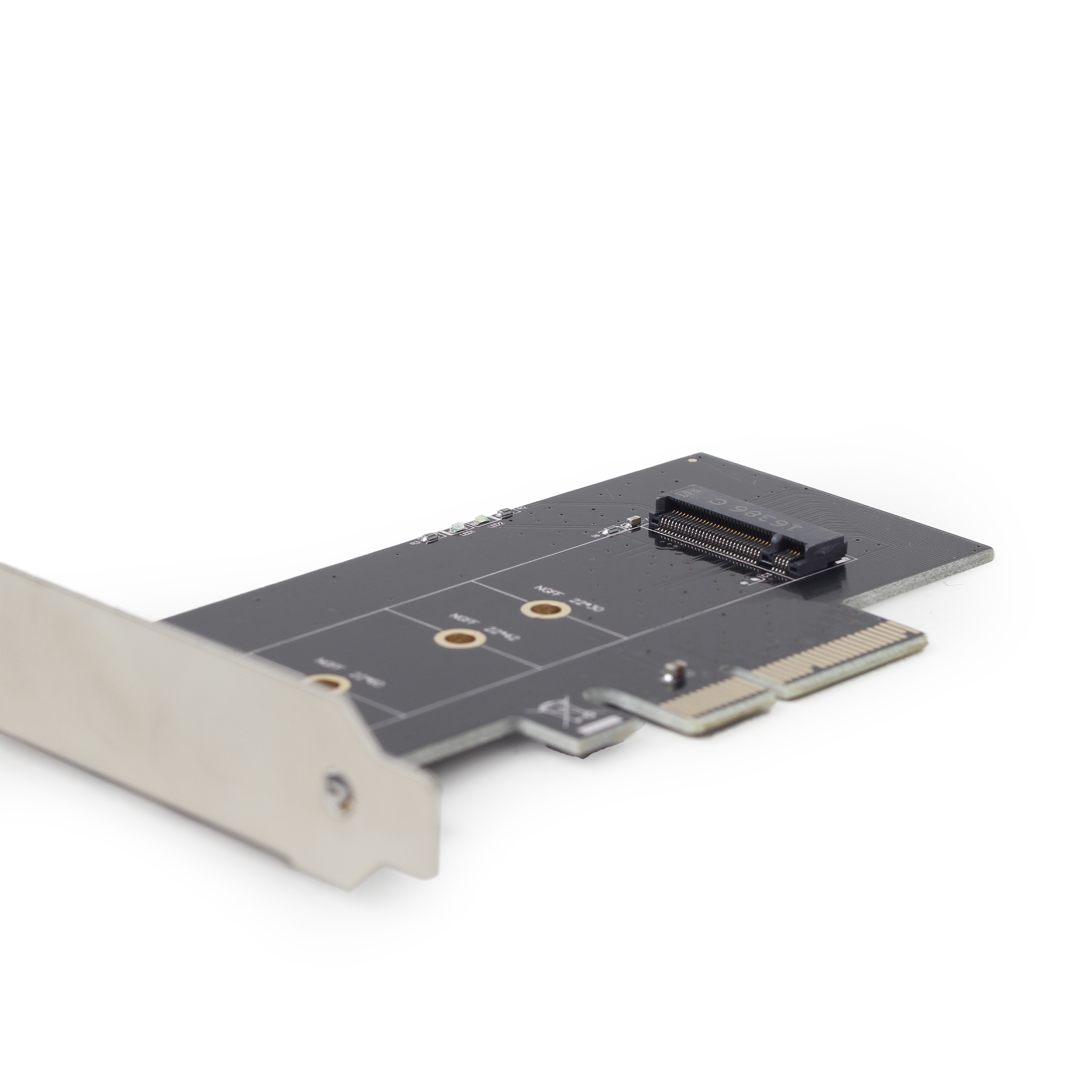

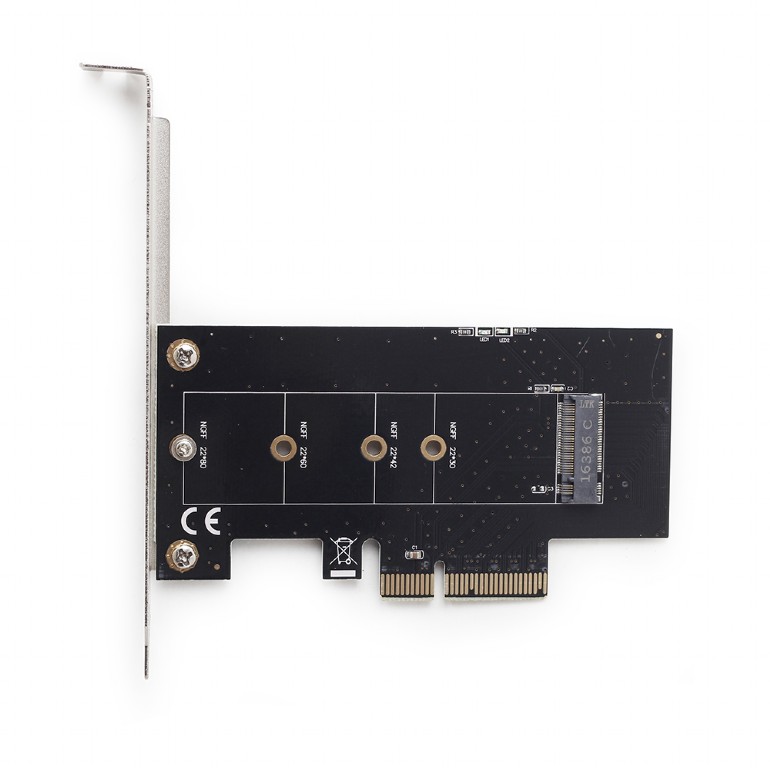

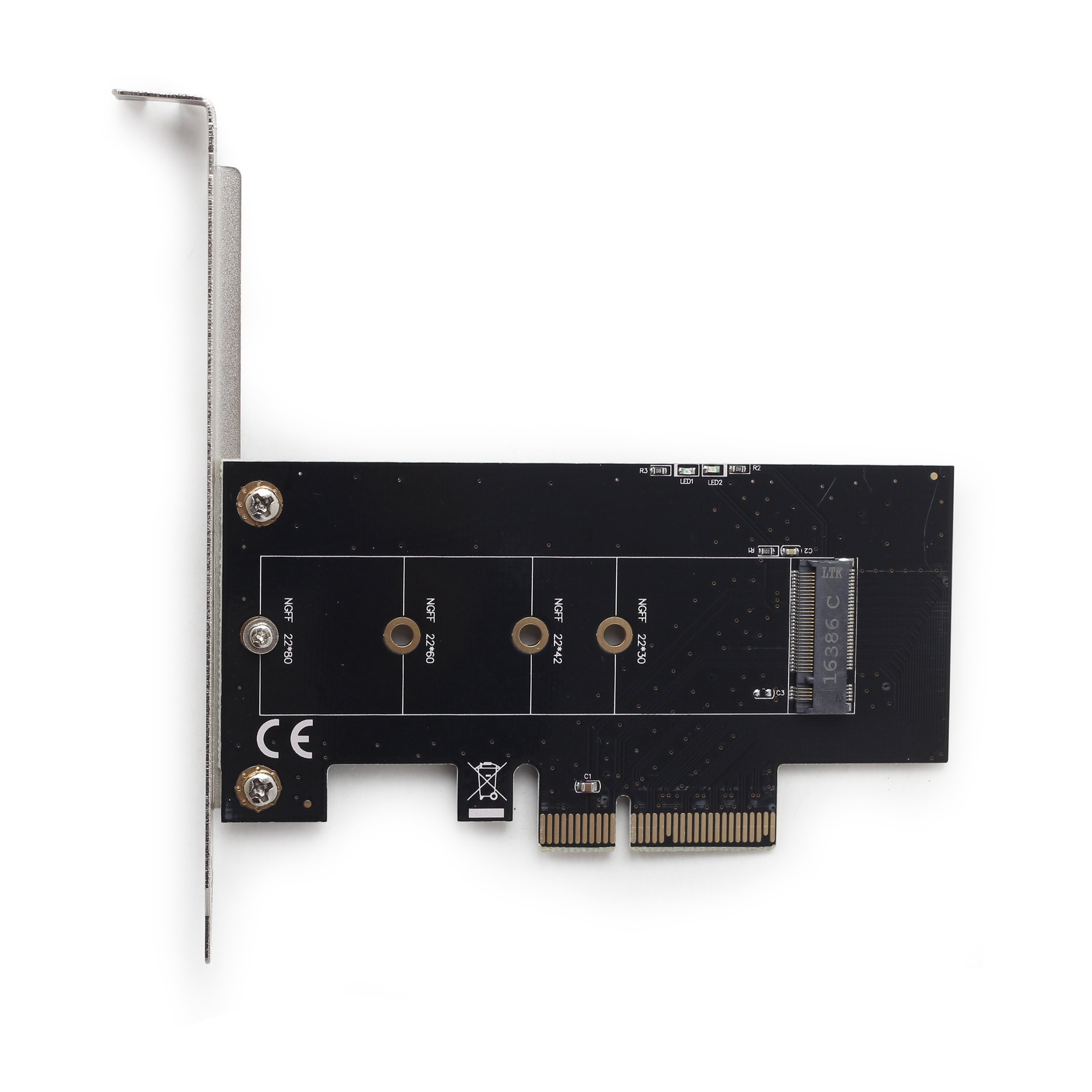

M.2 SSD adapter PCI-Express add-on card, with extra low-profile bracket

PEX-M2-01

Allows to use flash drive in M.2 format to any PC with at least one free PCI-Express slot

PCI-Express M.2 adapter add-on card
M.2 flash memory module in 2280, 2260 or 2242 format can be connected.
Supports NVM Express (NVMe)

Supports M.2 SSD modules in format 2280, 2260 and 2242 with key M or key B+M
Maximum supported SSD capacity : Max. 1 ??
Connectors:
1 x 67 pin M.2 key M slot
1 x PCI Express x4, V3.0 (x8 / x16 / x32 also supported)
1 x 2 pin pin header for LED
Bootable from UEFI version 2.3.1
Additional low-profile bracket
Heat sink: supported (optional accessory)
Dimensions: 101 x 55 x 12 mm
Net weight: 50 g

Windows 10 only
Free PCI-Express 4-lane (x4) slot or more (x8 / x16 / x32)

CE Certificate (pdf file)

Hi-Res photos

hi-res photo package (1829 kb)

hi-res photo (1089 kb)

hi-res photo (862 kb)

hi-res photo (687 kb)

Web Site images

website image (162 kb)

web package image (84 kb)

website image (281 kb)

website image (202 kb)

Package contents
PCIe card
low profile bracket
Fixation screw

Packing details
Q'ty in crtn, pcs	100
Crtn volume, CUM	0.08904
Crtn weight, kgs	12.51
Individual package size LxWxH:	160x140x30 mm
Carton size LxWxH:	530x350x480 mm
Country of origin	CN
Barcode	8716309099530
Customs code	8522900090
Packaging	white box + color sleeve
