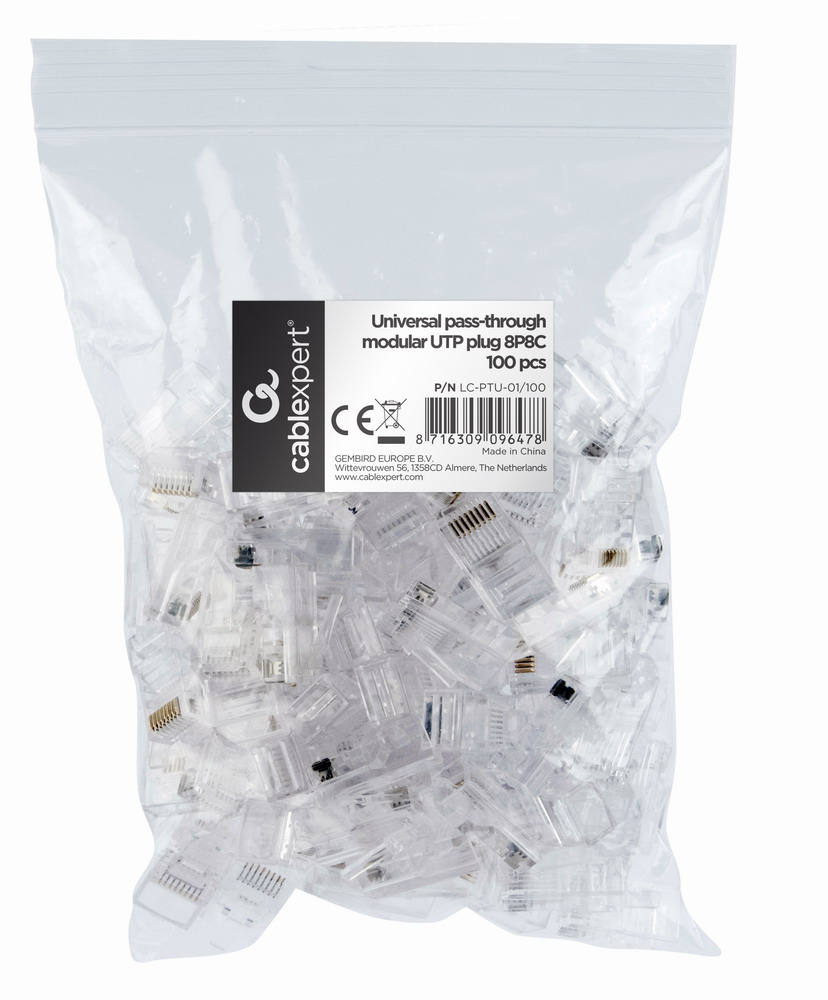

Universal pass-through modular UTP plug 8P8C, 100 pcs per bag

LC-PTU-01/100

Universal pass-through modular UTP plug 8P8C, 100 pcs per bag

LC-PTU-01/100

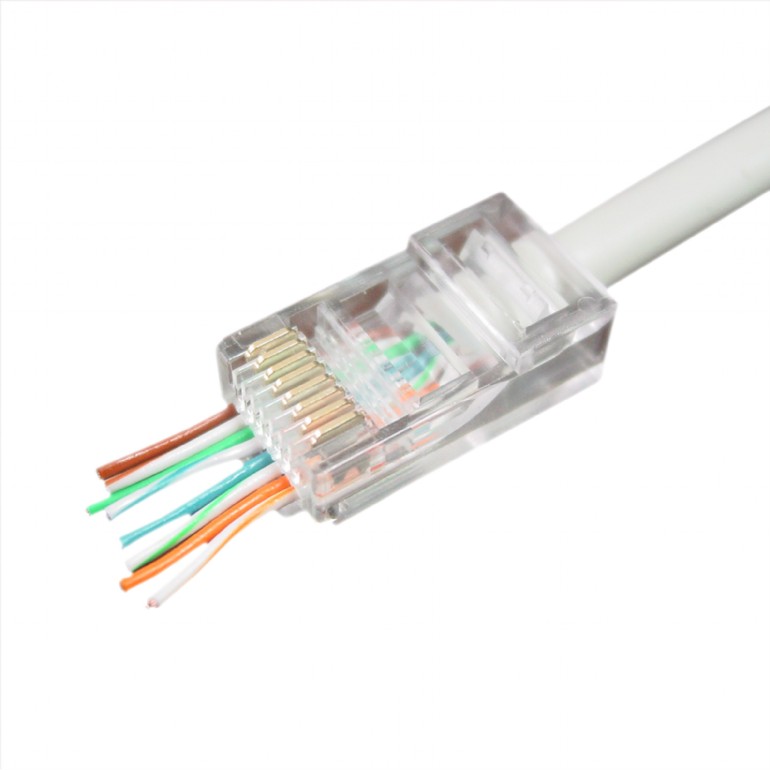

This innovative RJ45 8P8C connector simplifies twisted pair terminations by allowing the wires to be inserted through the connector completely and out the front. This allows users to easily verify the proper wiring order. Because this also allows to tightly pull the connector down over the cable jacket, it seats more tightly in the rear of the connector as well. This reduces the distance between the wire twists and contacts and improves performance.
No more wasted crimps! More reliable, higher performance.

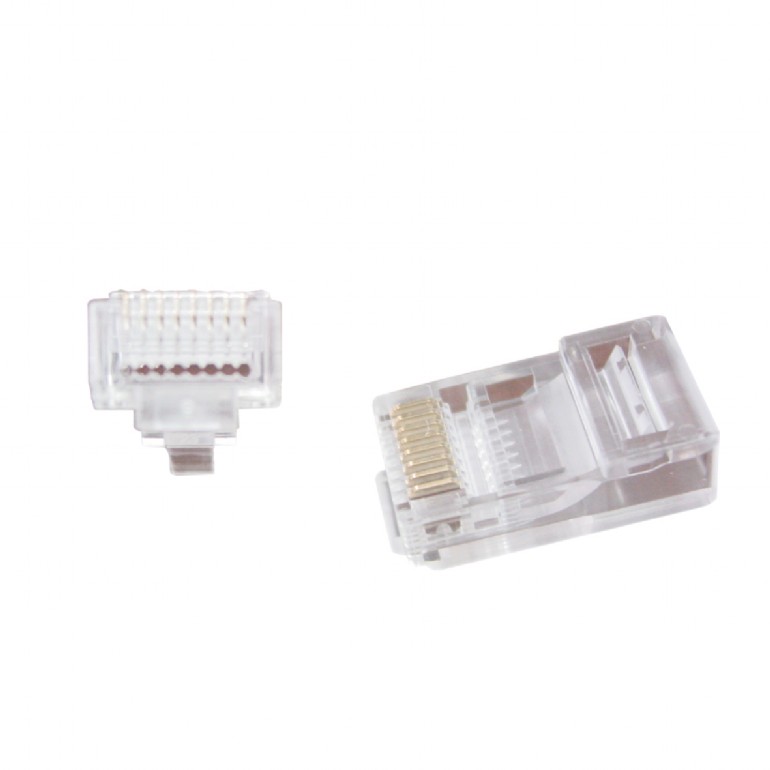

Modular 8P8C RJ45 plug
Practical pass-through design for easy crimping
Gold plated 2-fork internal contacts for both solid and stranded LAN cables
Suitable for conductors of max. 24 AWG

Structure: 8P8C
Shielding: no (UTP)
Net weight: 130 g (100 pcs)

CE Certificate (pdf file)

Hi-Res photos

hi-res photo package (1642 kb)

Web Site images

web package image (120 kb)

website image (487 kb)

website image (2290 kb)

Package contents
Carton contains bags with 100 pcs

Packing details
Q'ty in crtn, pcs	50
Crtn volume, CUM	0.03024
Crtn weight, kgs	9.64
Individual package size LxWxH:	160x115x40 mm
Carton size LxWxH:	400x360x210 mm
Country of origin	CN
Barcode	8716309096478
Customs code	8536699099
Packaging	polybag
