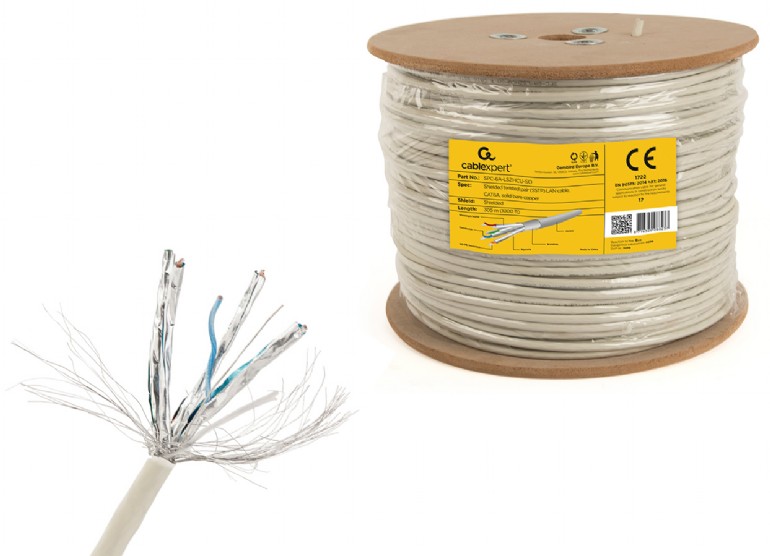

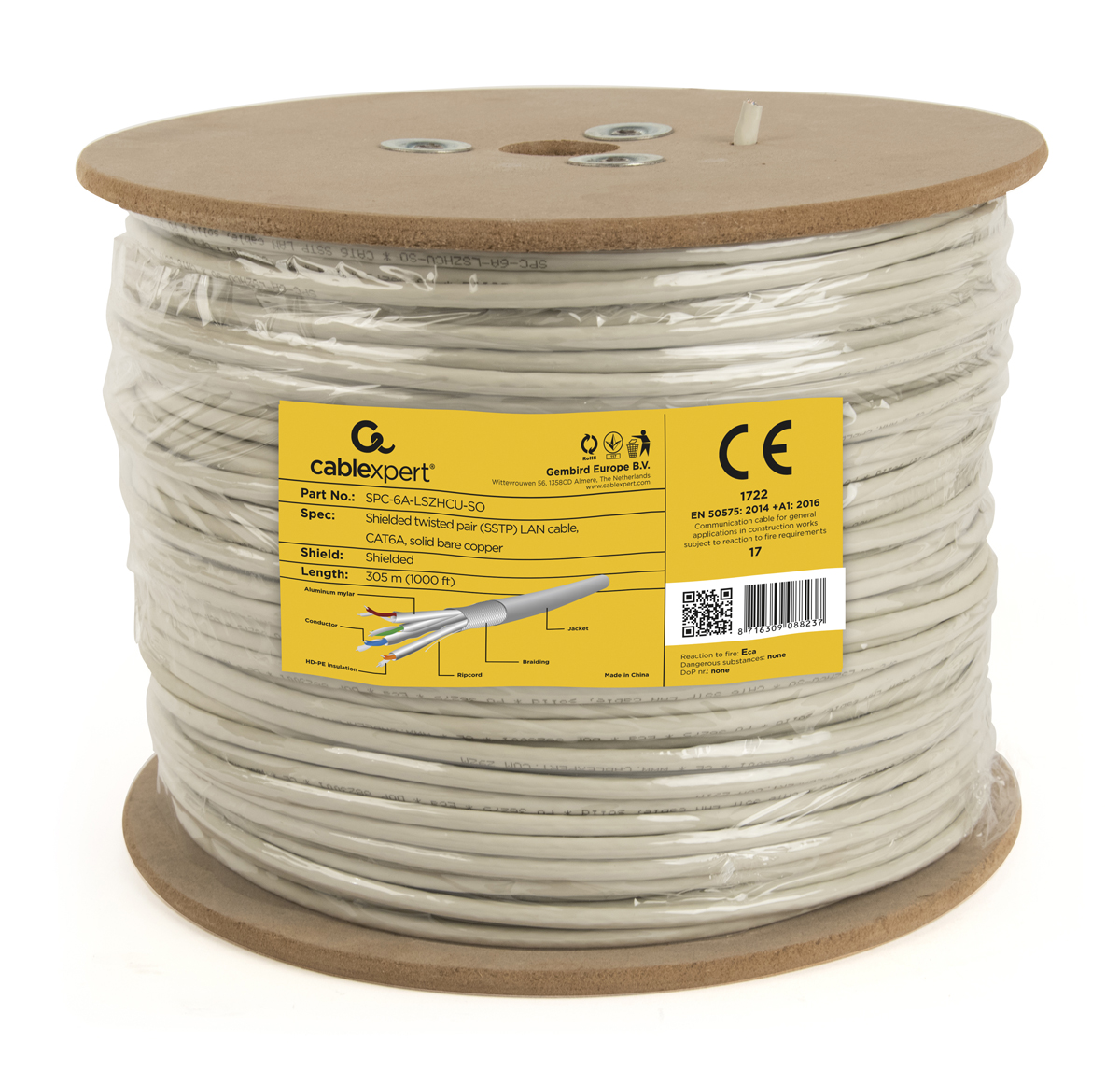

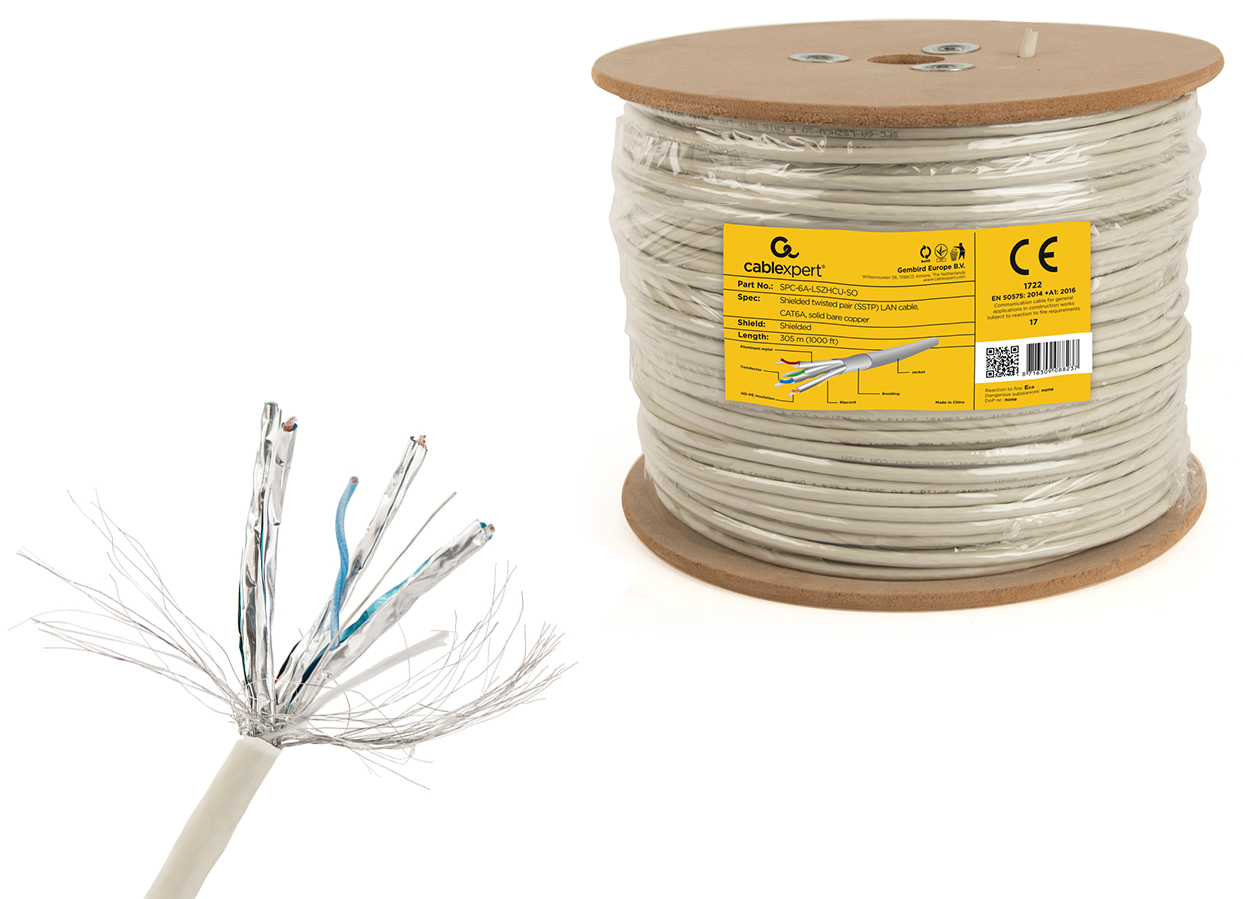

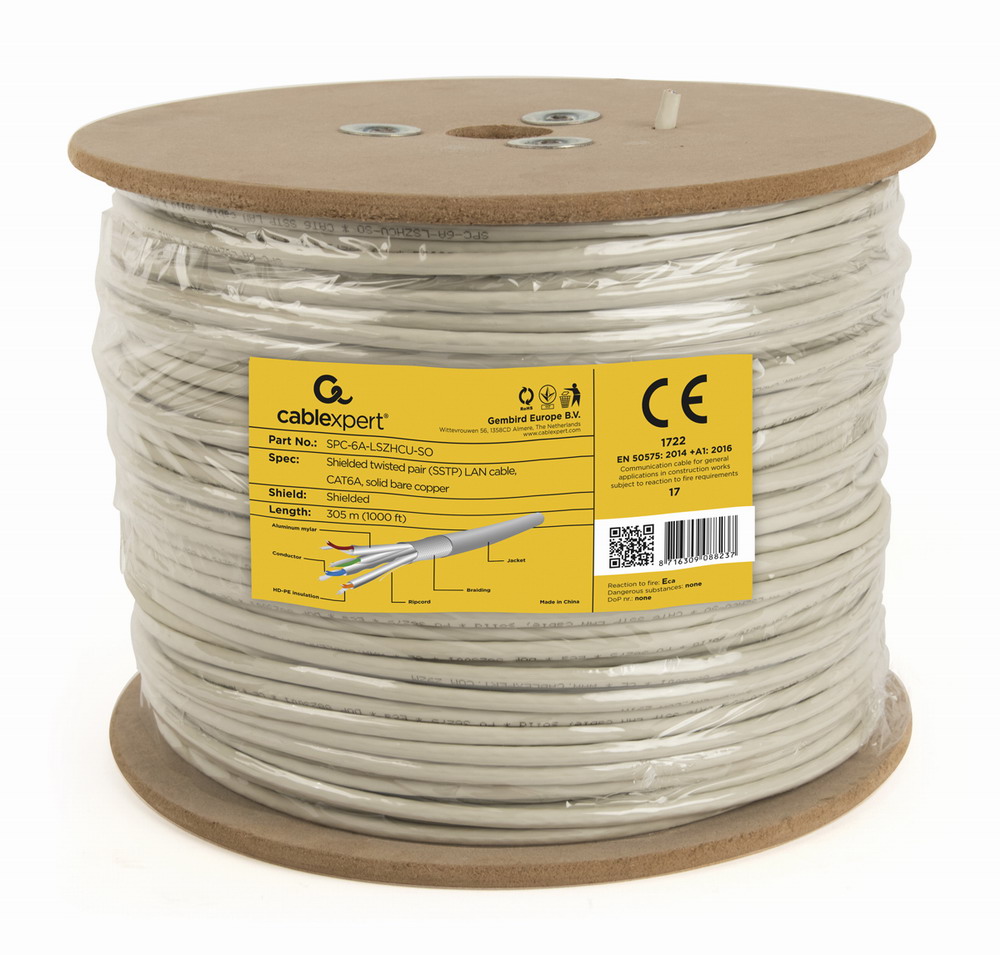

CAT6A SSTP LSZH LAN cable, solid, 305 m

SPC-6A-LSZHCU-SO

CAT6A SSTP LSZH LAN cable, solid, 305 m

SPC-6A-LSZHCU-SO

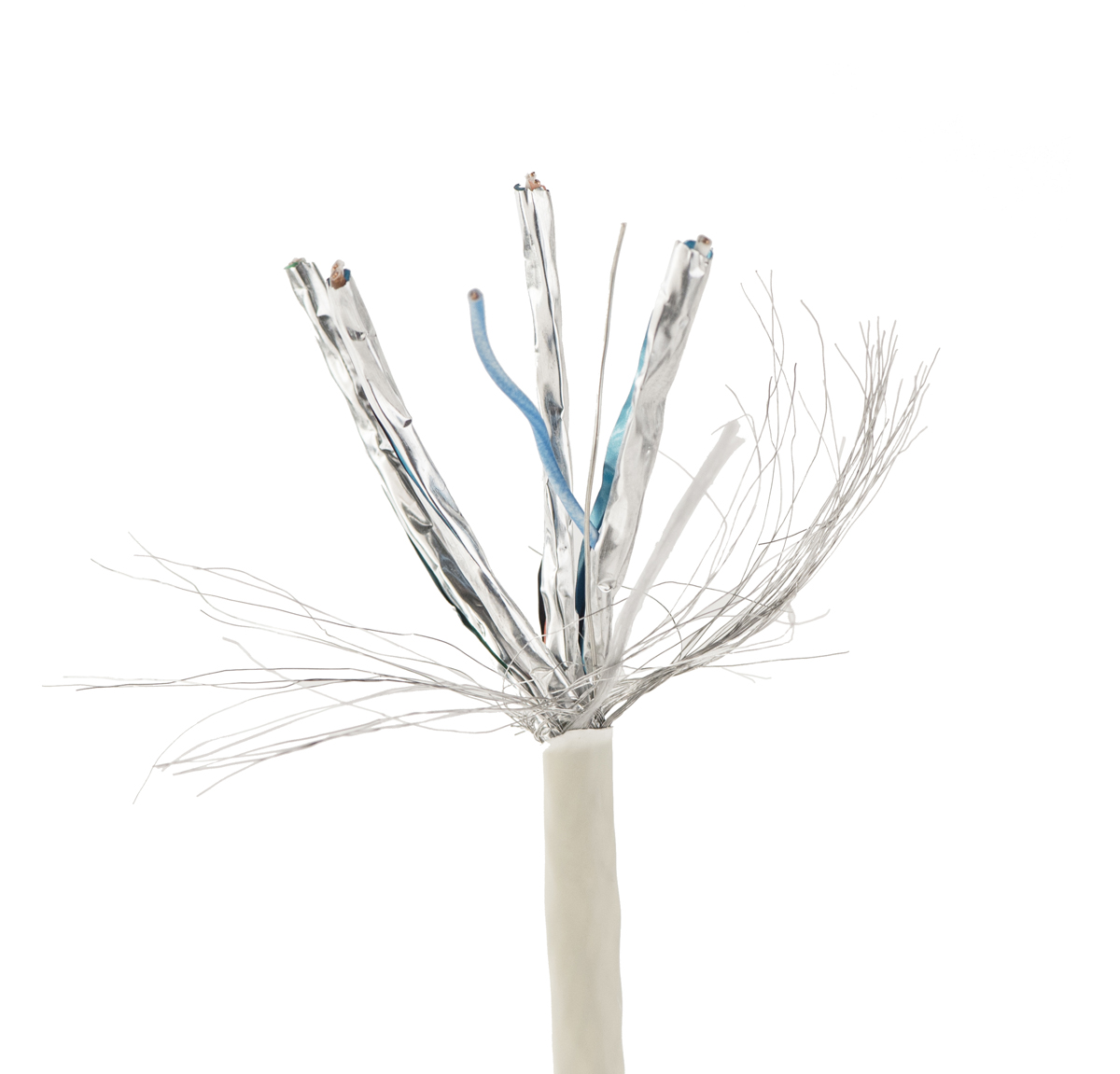

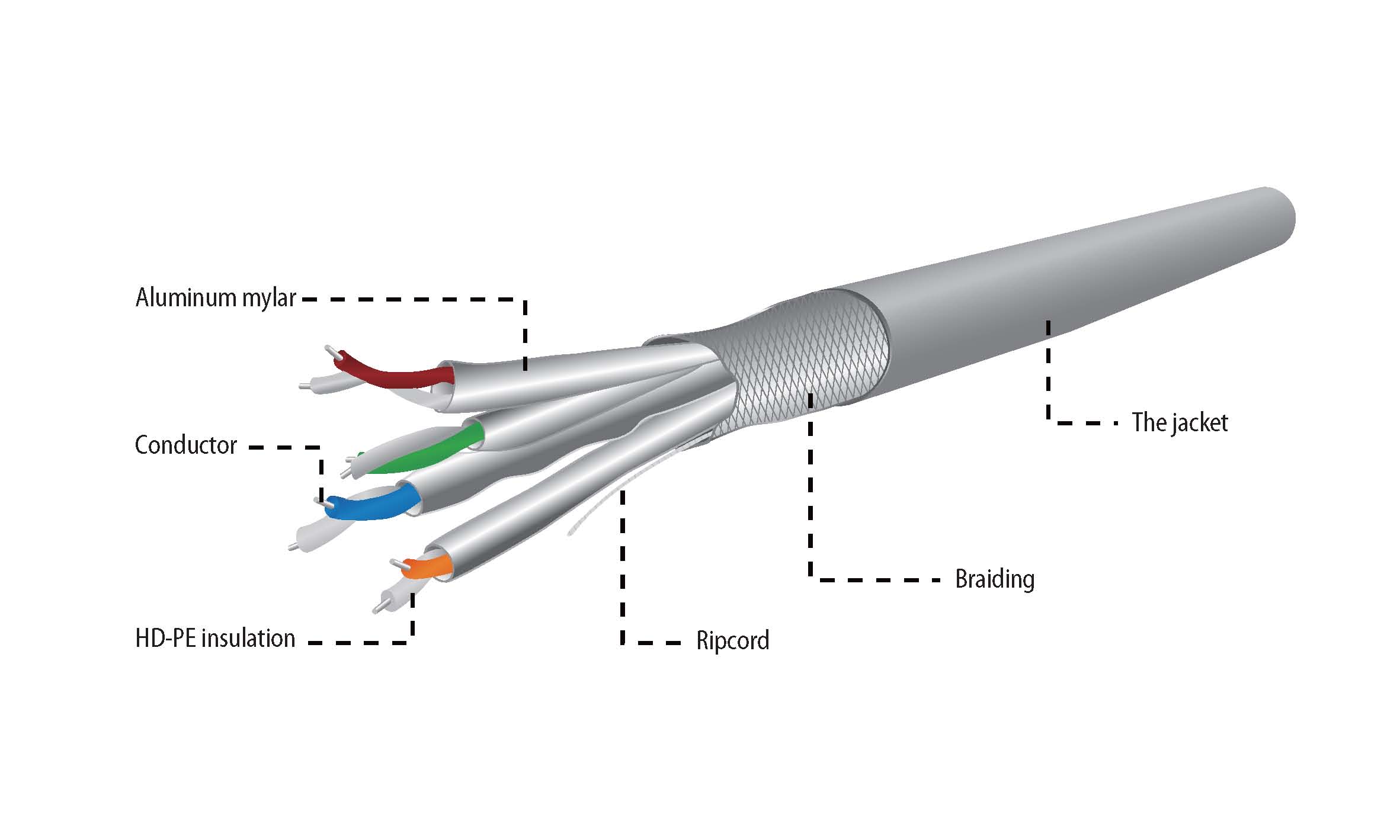

Screened Shielded Twisted Pair (SSTP) CAT 6A LAN cable
High quality full copper solid conductors
Low Smoke Zero Halogen (LSZH) jacket

Shielded twisted pair (SSTP) LAN cable
Category 6A
Material: AWG23 solid CU, LSZH jacket
Length: 305 m
Package: roll
Color: grey
Conductor resistance (max): 90 ohm/ 1000m
Insulation resistance (min): 5M ohm/km
Pair-to-Ground capacitance: < 330PF / 100m
Characteristic impedance: < 100Ohm (+/- 15)
Transport and storage temperature: 0 - 60 degrees
Operating temperature: -20 - 70 degrees
Working distance: <100m

Packing details
Q'ty in crtn, pcs1
Crtn volume, CUM0.02805625
Crtn weight, kgs15.75
Individual package size LxWxH:325x325x245 mm
Carton size LxWxH:335x335x250 mm
Country of originCN
Barcode8716309088237
Customs code8544492000
Packagingother

Trade Mark

drawing 2016 (103 kb)

Product information sheet
