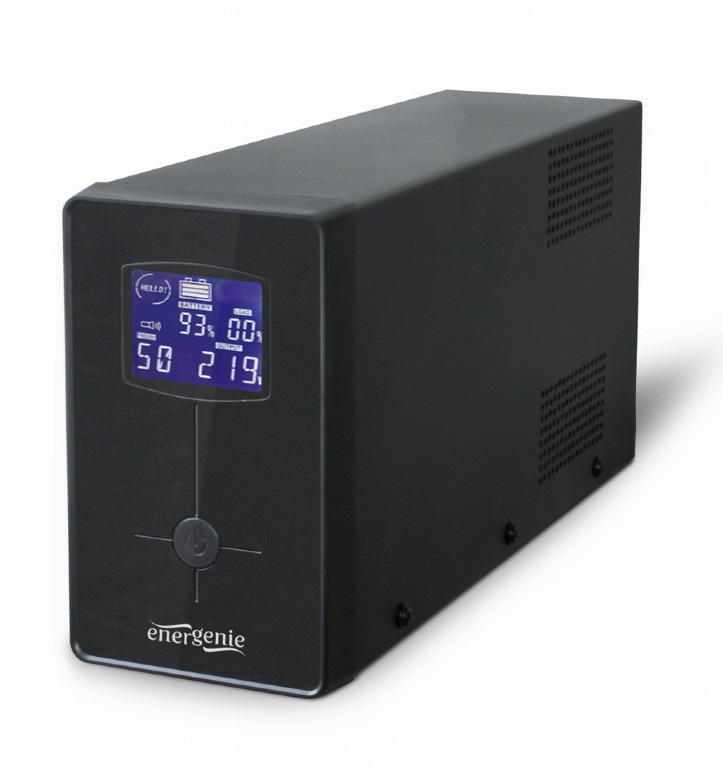

Uninterruptable 1500 VA power supply for PC’s
Automatic output voltage regulation (AVR)
USB interface
LCD status indication
Short circuit protection
Overload, surge, spike and lightning protection
Audible and visual alarms
Overcharge and overdischarge protection
Including practical UPS Management software

Type: line interactive
Waveform: sine wave (AC mains), modified (square) sine wave (battery)
Input: 220 V AC ± 25%, 50 / 60 Hz ± 10%
Output: 220 V AC ± 10%, 50 / 60 Hz ± 1% (220 V AC ± 5 % at inverter mode)
Switching time: less than 10 ms
Backup time: 8...20 mins (depends on the load)
Battery: sealed lead-acid 12 V DC / 8 Ah x 2 pcs(connected in series)
Charge time: up to 12 hours

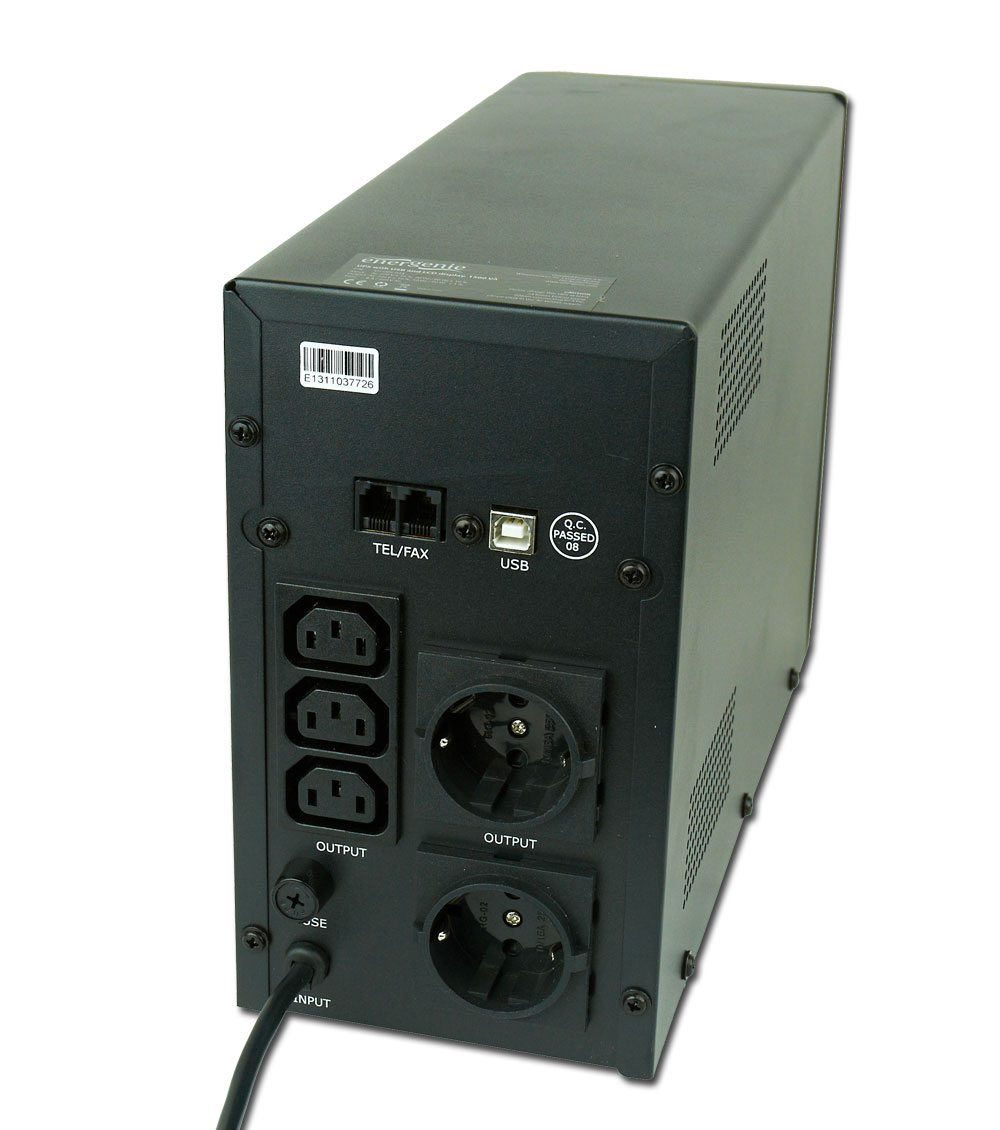

Sockets: built-in input cable, 3 pcs x C13 output, 2 pcs x german Shuko
USB control interface: BF socket
Operating conditions: 0°C ~ 40°C, at humidity 20 ~ 90 %RH non condensing
Power: 1500 VA (900 W)
Charging current: up to 1.2 A
Noise: < 45 dB at 1 m distance
Dimensions: 400 x 125 x 220 mm
Net weight: 10.8 kg
"Cold-start" function

Software is compatible with Windows Vista, Windows 7/8/10/11, Windows 2008 server
In order to work correclty, the connected load should be at least 5% of the maximum capacity of the UPS. For example, a 700 W UPS needs at least a connected load of 35 W to work.
