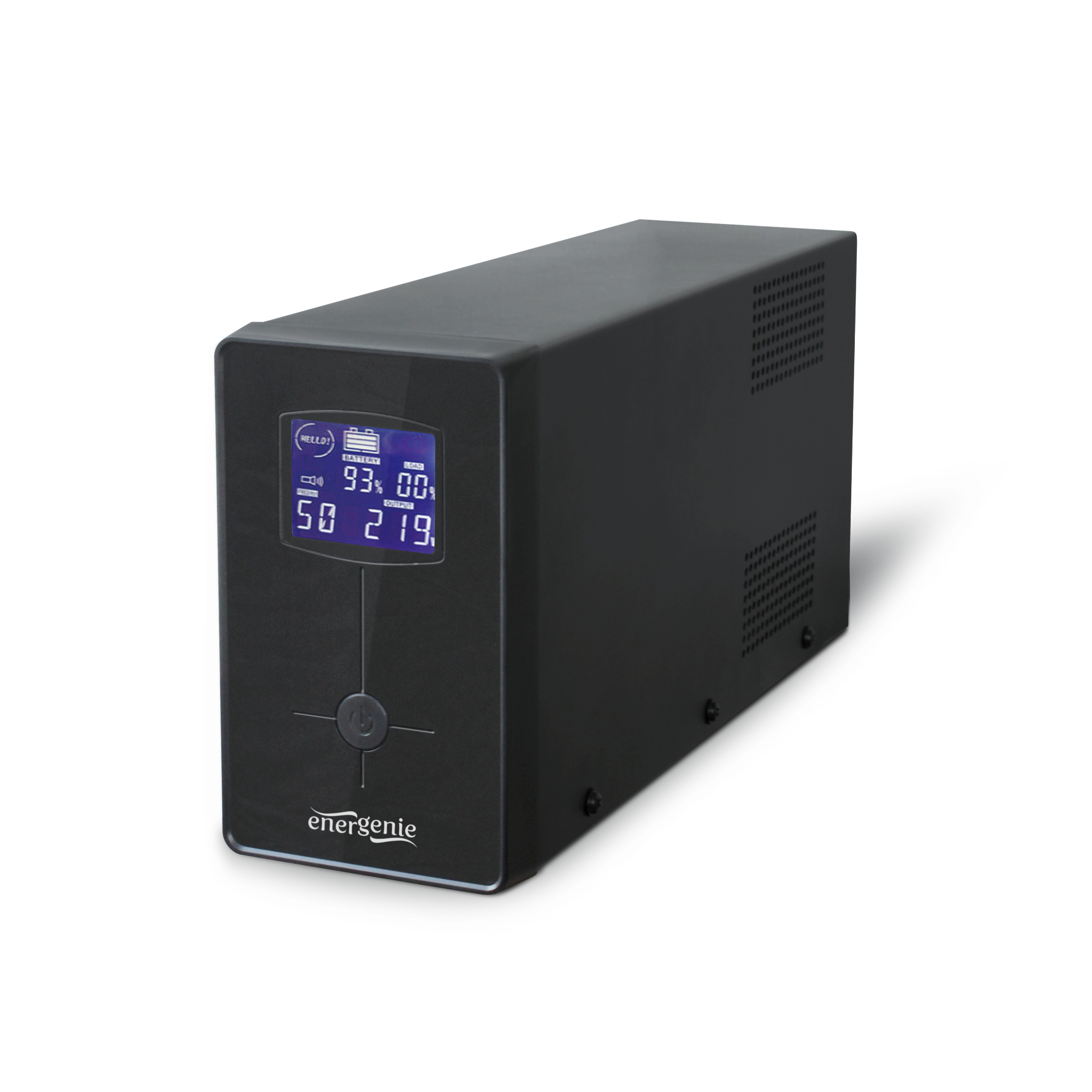

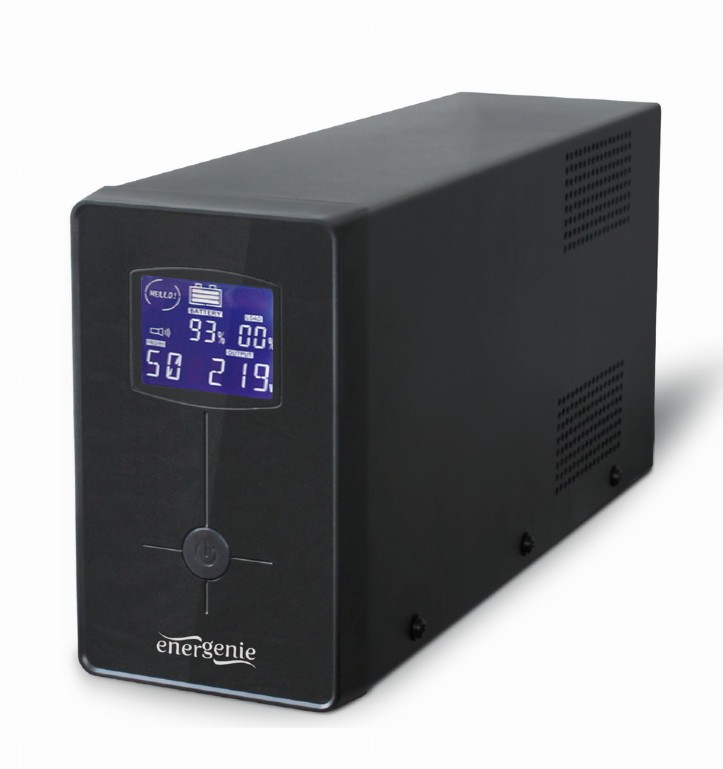

Uninterruptable 650 VA power supply with modified sine wave output
Automatic AC voltage regulation (AVR)
Intelligent surge-, overload- and short-circuit protection
Audible and visual alarms
LCD status display
Intelligent battery management with overcharge and over-discharge protection

Type: line interactive
Waveform: sine wave (AC mains), modified (square) sine wave (battery)
Input: 220 V AC ± 25%, 50 / 60 Hz ± 10%
Output: 220 V AC ± 10%, 50 / 60 Hz ± 1% (220 V AC ± 5 % at inverter mode)
Switching timeabout or less than 8 ms
Backup time: 8...20 mins (depends on the load)
Battery: sealed lead-acid 12 V DC / 7Ah
Charge time: up to 12 hours

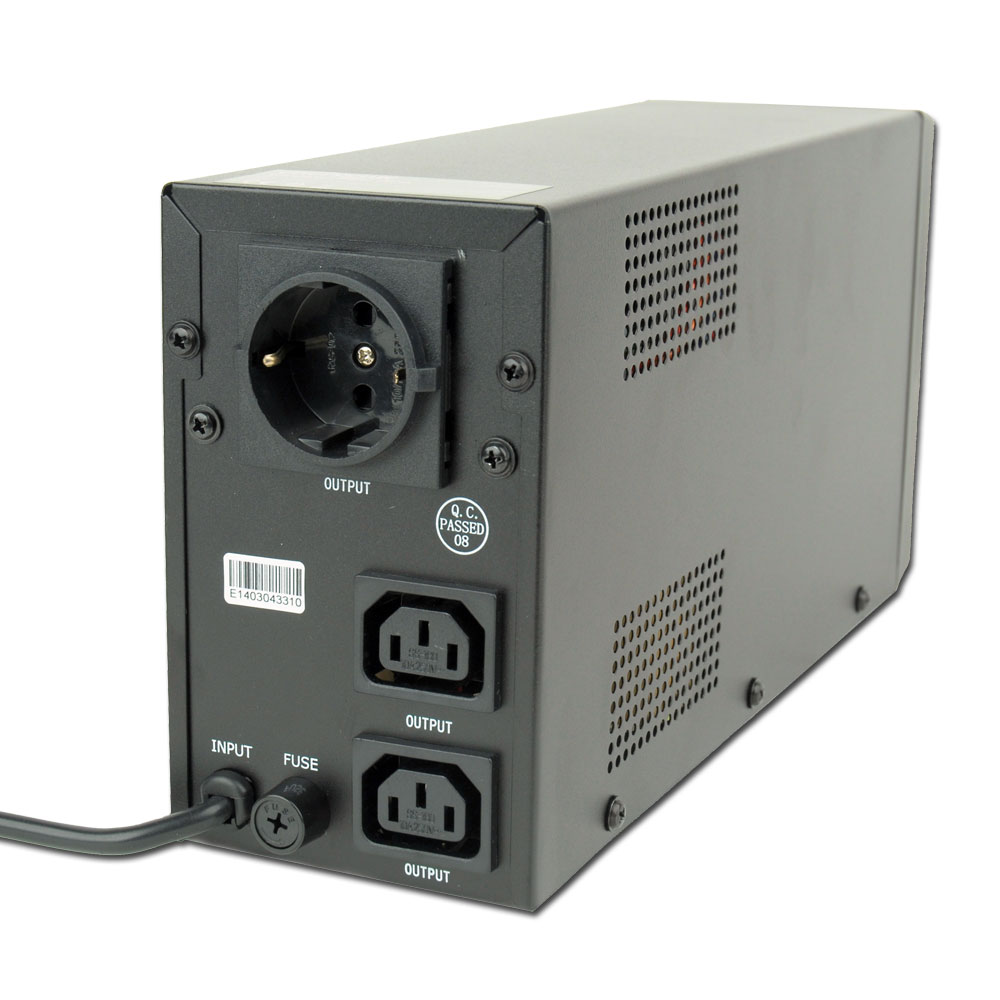

Output sockets: 2 pcs x C13, 1 pc x german Shuko
Operating conditions: 0°C ~ 40°C, at humidity 20 ~ 90 %RH non condensing
Power: 650 VA (390 W)
Charging current: up to 1.2 A
Noise: < 45 dB at 1 m distance
Dimensions: 340 x 95 x 165 mm
Product weight: 5.2 kg
"Cold-start" function

In order to work correclty, the connected load should be at least 5% of the maximum capacity of the UPS. For example, a 700 W UPS needs at least a connected load of 35 W to work.
