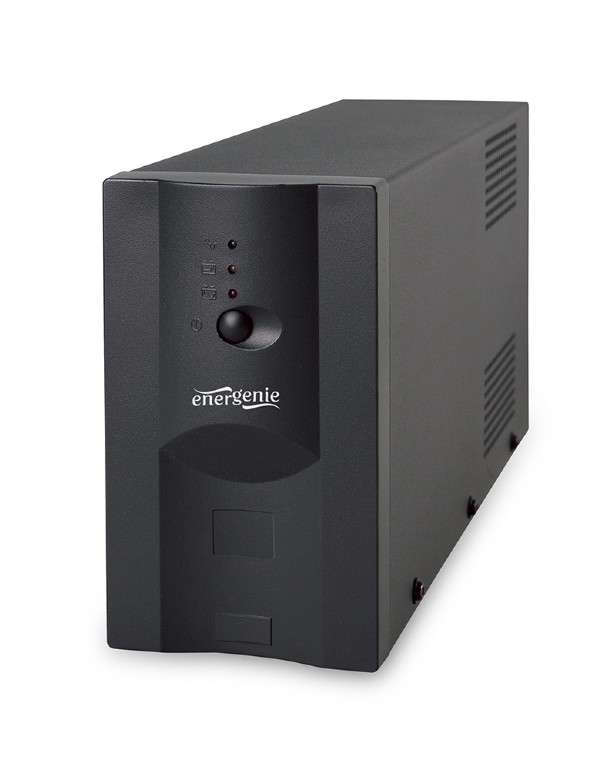

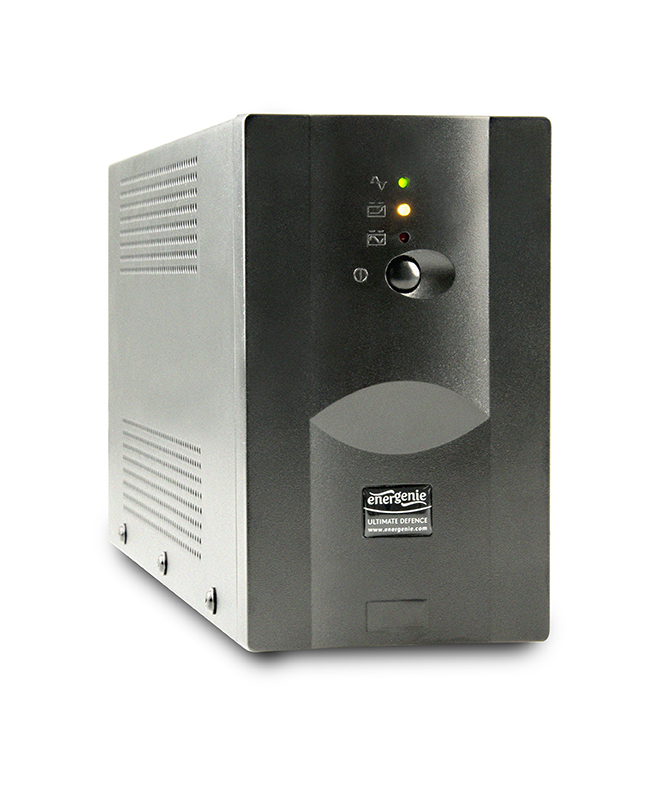

Uninterruptable 850 VA power supply for PC’s
Automatic output voltage regulation (AVR)
USB interface
LED status indication
Short circuit protection
Surge, spike and lightning protection
Audible and visual alarms
Overcharge and overdischarge protection
Including practical UPS Management software

UPS type: line interactive
Input: AC 162 - 295 V, 50 Hz / 60 Hz ± 10 %
Output: AC 188 - 254 V, 50 Hz / 60 Hz ± 0.5 % (on battery)
Waveform: sine wave (AC mains), simulated sine wave (battery)
Temperature compensation:  -20mV/1 °C (per cell)
Switching time: no more than 10 ms
Backup time: 8...20 mins (depends on the load)
Battery: sealed lead-acid 12V/7Ah x 1 pc
Charge time: up to 12 hours
Sockets: 1x C14 input, 2x C13 outputs; USB-BF connector
Operating conditions: 0 °C~40 °C, at humidity 20~90 %RH non condensing
Power: 850 VA (520 W)
Dimensions: 340 x 95 x 165 mm
Product weight: 7 kg
"Cold-start" function

Software is compatible with Windows 7, Windows 2008 server, Windows 8/10/11
In order to work correclty, the connected load should be at least 5% of the maximum capacity of the UPS. For example, a 700 W UPS needs at least a connected load of 35 W to work.

certificate UPS-PC-652A_850AP_1202AP-CE-EMC(Report) (1779 kb)

certificate UPS-PC-652A_850AP_1202AP-CE-EMC (329 kb)

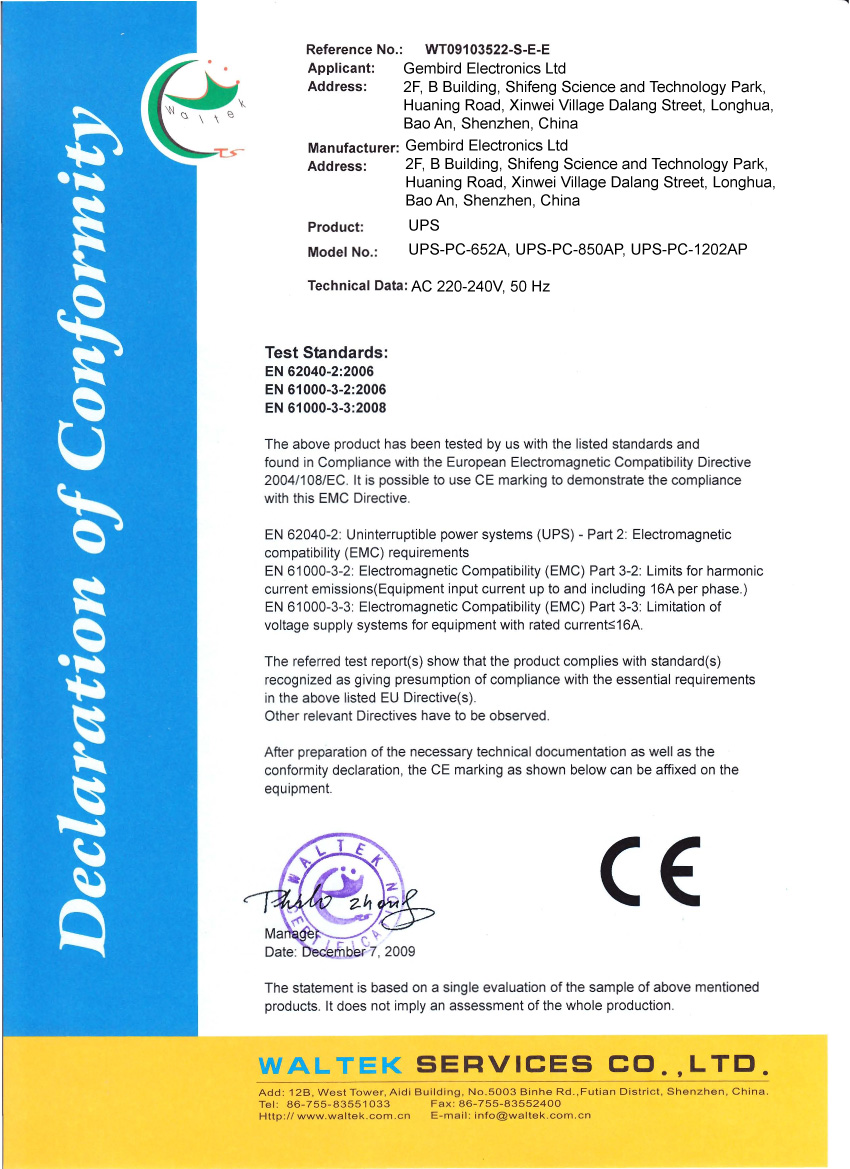

CE Certificate (pdf file)

hi-res photo package (2191 kb)

website image (360 kb)

website image (8 kb)

website image (299 kb)

website image (612 kb)

web package image (91 kb)

web package image (220 kb)

website image (297 kb)

Helpdesk Email helpdesk@gembird.nl (Monday to Friday from 9:00 AM to 5:00 PM (NL time) excluding holidays)

manual UPS-PC-850AP Energenie User Manual (3669 kb)

Helpdesk Email helpdesk@gembird.nl (Monday to Friday from 9:00 AM to 5:00 PM (NL time) excluding holidays)

driver Energenie UPSmart-II control software (9352 kb)

driver UPS v1.9 (12725 kb)

3D_view (13809 kb)
