Uninterruptable 1200 VA power supply for PC’s
Automatic output voltage regulation (AVR)
USB interface
LED status indication
Short circuit protection
Surge, spike and lightning protection
Audible and visual alarms
Overcharge and overdischarge protection
Fax/Modem/Telephone protection socket
Including Practical UPS Management software

UPS type: line interactive
Input: AC 162 - 295 V, 50 Hz / 60 Hz ± 10 %
Output: AC 188 - 254 V, 50 Hz / 60 Hz ± 0.5 % (on battery)
Waveform: sine wave (AC mains), simulated sine wave (battery)
Temperature compensation:  -20mV/1 °C (per cell)
Switching time: no more than 5 ms
Backup time: 2...20 mins (depends on the load)
Battery: sealed lead-acid 12V/7Ah x 2pcs
Charge time: up to 12 hours

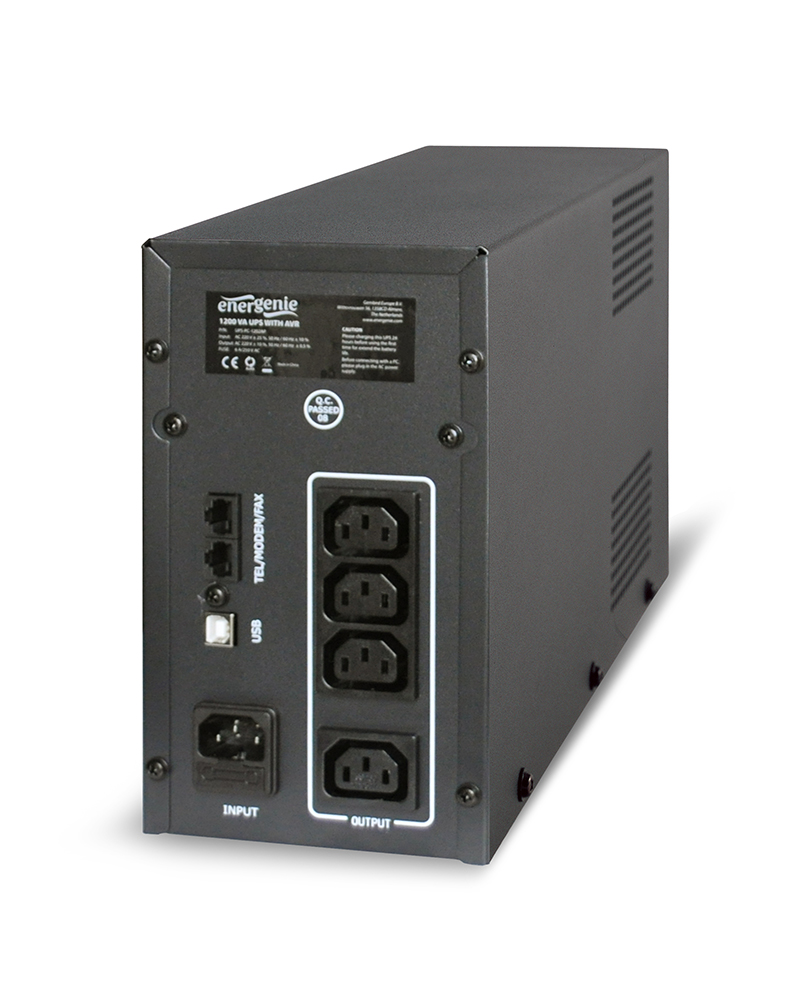

Sockets: 1x input (C14), 4x output (C13 / Shuko - optional); 2x telephone RJ11 connectors; 1x USB-BF connector
Operating conditions: 0°C~40°C, at humidity 20~90 %RH non condensing
Power: 1200 VA (720 W)
Dimensions: 382 x 222 x 124 mm
Product weight: 10.4 kg
"Cold-start" function

Software is compatible with Windows 7, Windows 2008 server, Windows 8/10/11
In order to work correclty, the connected load should be at least 5% of the maximum capacity of the UPS. For example, a 700 W UPS needs at least a connected load of 35 W to work.

certificate UPS-PC-652A_850AP_1202AP-CE-EMC(Report) (1779 kb)

certificate UPS-PC-652A_850AP_1202AP-CE-EMC (329 kb)

CE Certificate (pdf file)

hi-res photo package (1377 kb)

hi-res photo (2266 kb)

website image (360 kb)

website image (323 kb)

web package image (230 kb)

website image (297 kb)

website image (612 kb)

Helpdesk Email helpdesk@gembird.nl (Monday to Friday from 9:00 AM to 5:00 PM (NL time) excluding holidays)

manual UPS-PC-652-850-1202AP Energenie User Manual (2424 kb)

Helpdesk Email helpdesk@gembird.nl (Monday to Friday from 9:00 AM to 5:00 PM (NL time) excluding holidays)

driver UPSmartV1.9 (12725 kb)

3D_view (14851 kb)
