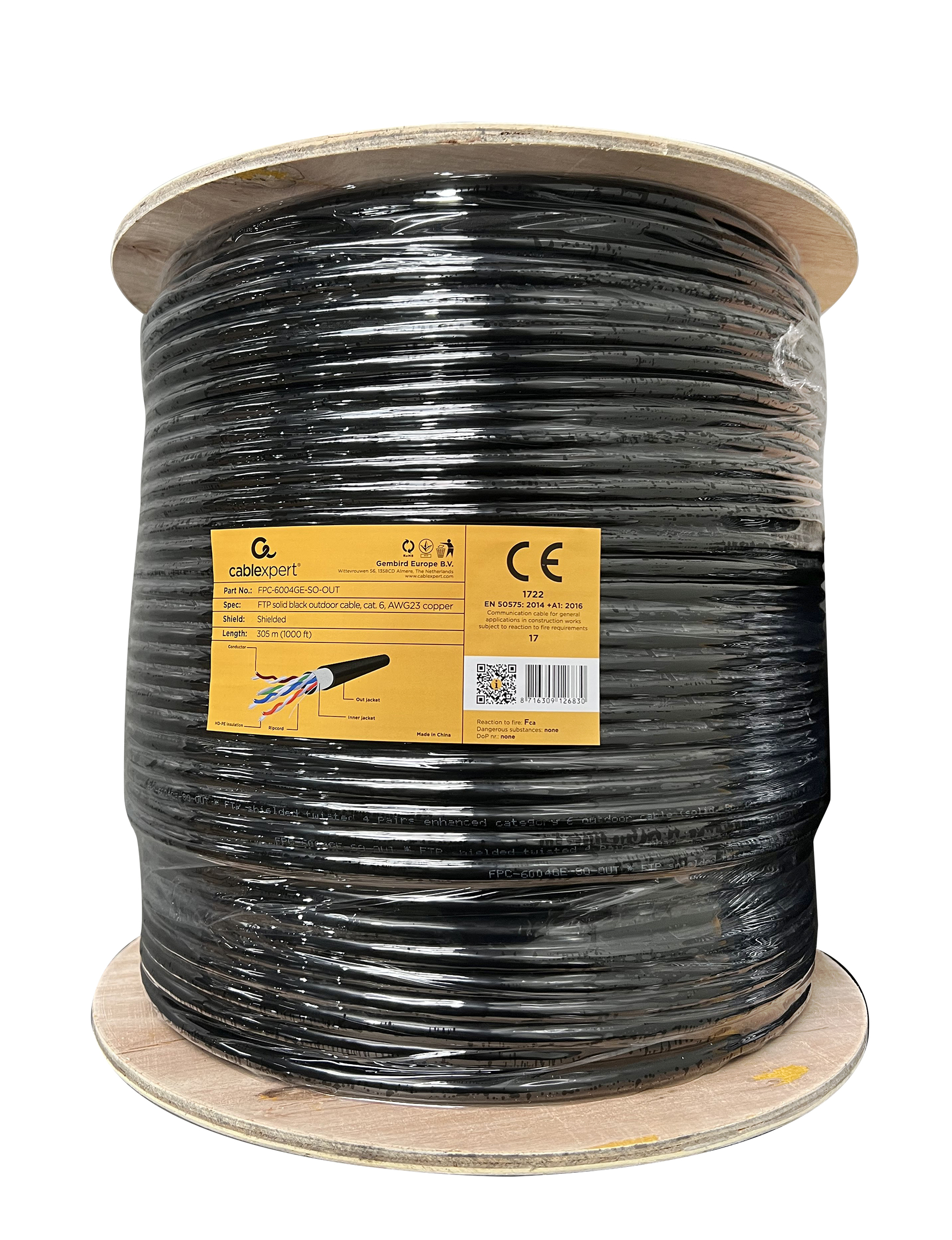

CAT6 FTP LAN Gel filled outdoor cable, solid, 305 m, black

FPC-6004GE-SO-OUT

CAT6 FTP LAN Gel filled outdoor cable, solid, 305 m, black

FPC-6004GE-SO-OUT

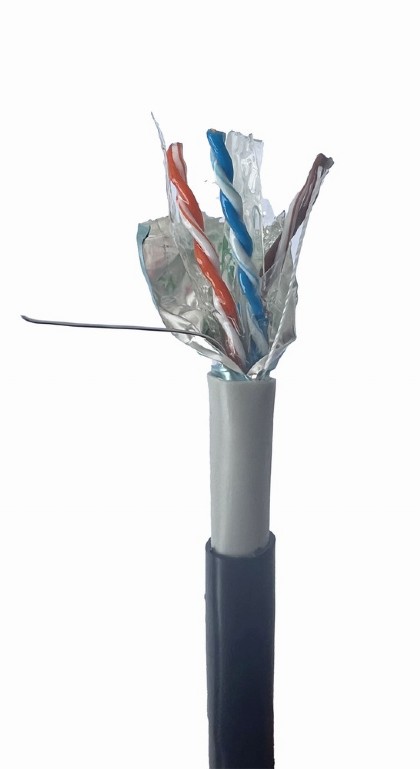

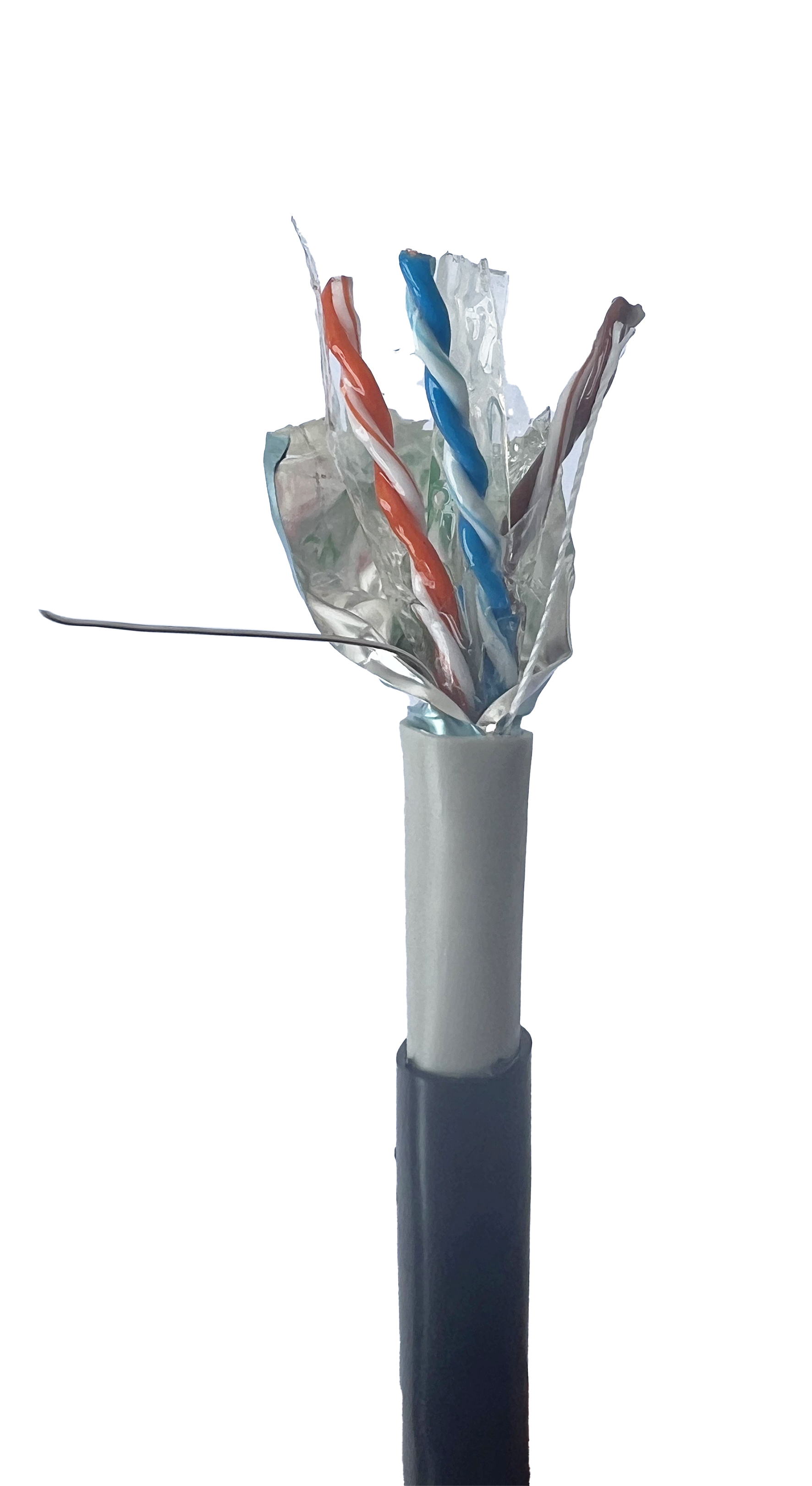

FTP shielded LAN cable with solid wires
High quality full copper conductors
For outdoor use: extra water resistance by the gel filling
Category 6

Shielded twisted pair (FTP) LAN cable
Category 6
Conductor material: AWG23 solid copper (0.56 mm)
Length: 1000 ft (305 m)
Package: roll
Color: black
Outdoor parameters:
Jacket material: PE
Density: 1.46 g/cm3
Hardness: 75 Shore A
Heat stability: 80
Volume resistivity at 20 °C: 4*10^10 ?*m
Oxygen index: 32 %
Cold resistance: 4 H * (-40 °C)
Tensile strength: 16.7 Mpa
Elongaton at break: 215.2 %
Ageing condilion: 100 °C * 168 H
Elongntion at break after ageing: 92 %
The residnal percent of elongation at break: 87 %
Conductor resistance (max): 90 ohm/ 1000m
Insulation resistance (min): 5M ohm/km
Pair-to-Ground capacitance: < 330PF / 100m
Characteristic impedance: < 100Ohm (+/- 15)
Transport and storage temperature: 0 - 60 degrees
Operating temperature: -20 - 70 degrees
Working distance: <100m

Hi-Res photos

hi-res photo (1889 kb)

hi-res photo (572 kb)

Web Site images

website image (43 kb)

website image (209 kb)

Packing details
Q'ty in crtn, pcs	1
Crtn volume, CUM	0.05846
Crtn weight, kgs	28
Individual package size LxWxH:	395x380x375 mm
Carton size LxWxH:	395x400x370 mm
Country of origin	CN
Barcode	8716309126830
Customs code	8544492000
Packaging	wooden reel
