Online type UPS: double voltage conversion without switching the power
USB control interface
LCD display
Short circuit protection
Compatible with power generators of any brand
Overload, surge, spike and lightning protection
Audible and visual alarms
Overcharge and overdischarge protection

UPS type: online, pure sine wave
Input: 220V AC ± 25%, 50Hz / 60Hz ± 10%
Output: 220V AC ± 1%, 50Hz / 60Hz ± 0.5% (on battery)
Output power factor: > 0.99
Inverter output efficiency (resistive load): 85%, any load type is allowed
Switching time: zero
Backup time: 8...20 mins (depends on the load)
Battery: 151 x 65 x 95 mm, sealed lead-acid 12 V / 9 Ah / 2.35 kg x 2 pcs, 24VDC
Charge time: 90% capacity restored in 3 hours
External battery connectors: yes

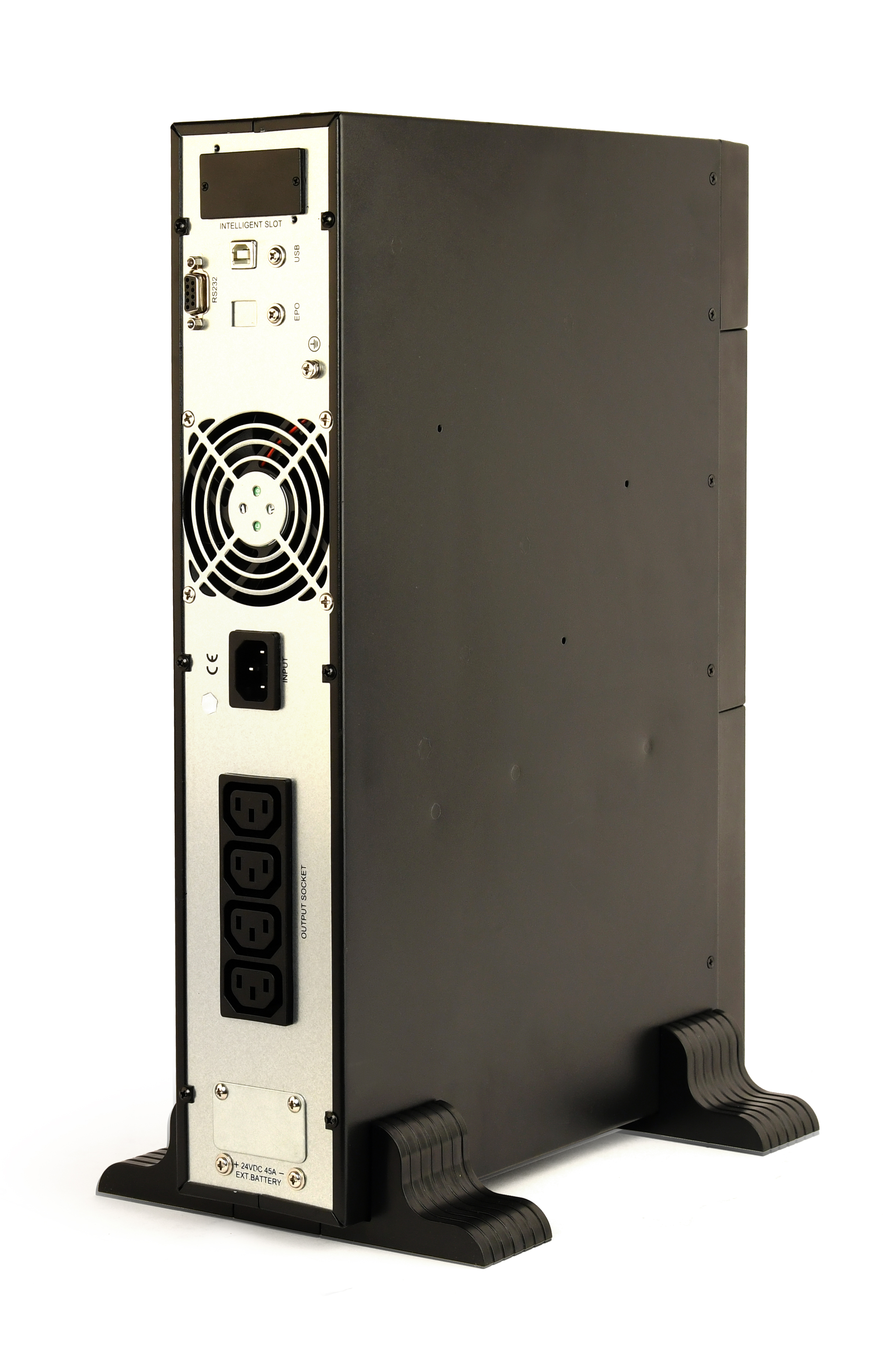

Sockets: input IEC C14, outputs: 4x IEC sockets
Interface communication: USB; optional slots: RS485 / dry contacts / SNMP
Operating conditions: 0°C~40°C, at humidity 10~90%RH non condensing
Noise: < 45 dB (at 1 meter distance)
Power: 1000 VA (900 W)
Dimensions: 440 x 338 x 88 mm
Product weight: 12.3 kg
"Cold-start" function

In order to work correclty, the connected load should be at least 5% of the maximum capacity of the UPS. For example, a 700 W UPS needs at least a connected load of 35 W to work.
