Online UPS, 1000 VA

EG-UPSO-1000

Online UPS, 1000 VA

EG-UPSO-1000
  • ULTIMATE DEFENCE
  • Protects important data from power cuts
  • Protects valuable equipment
  • Protects users

Online type UPS: double voltage conversion without switching the power
USB control interface

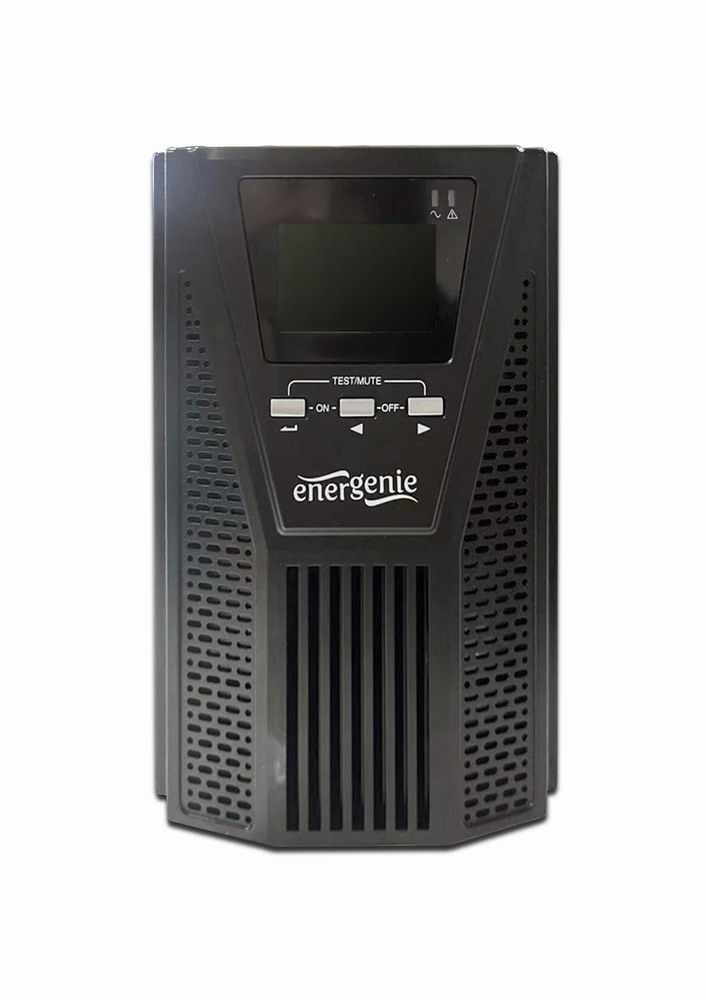

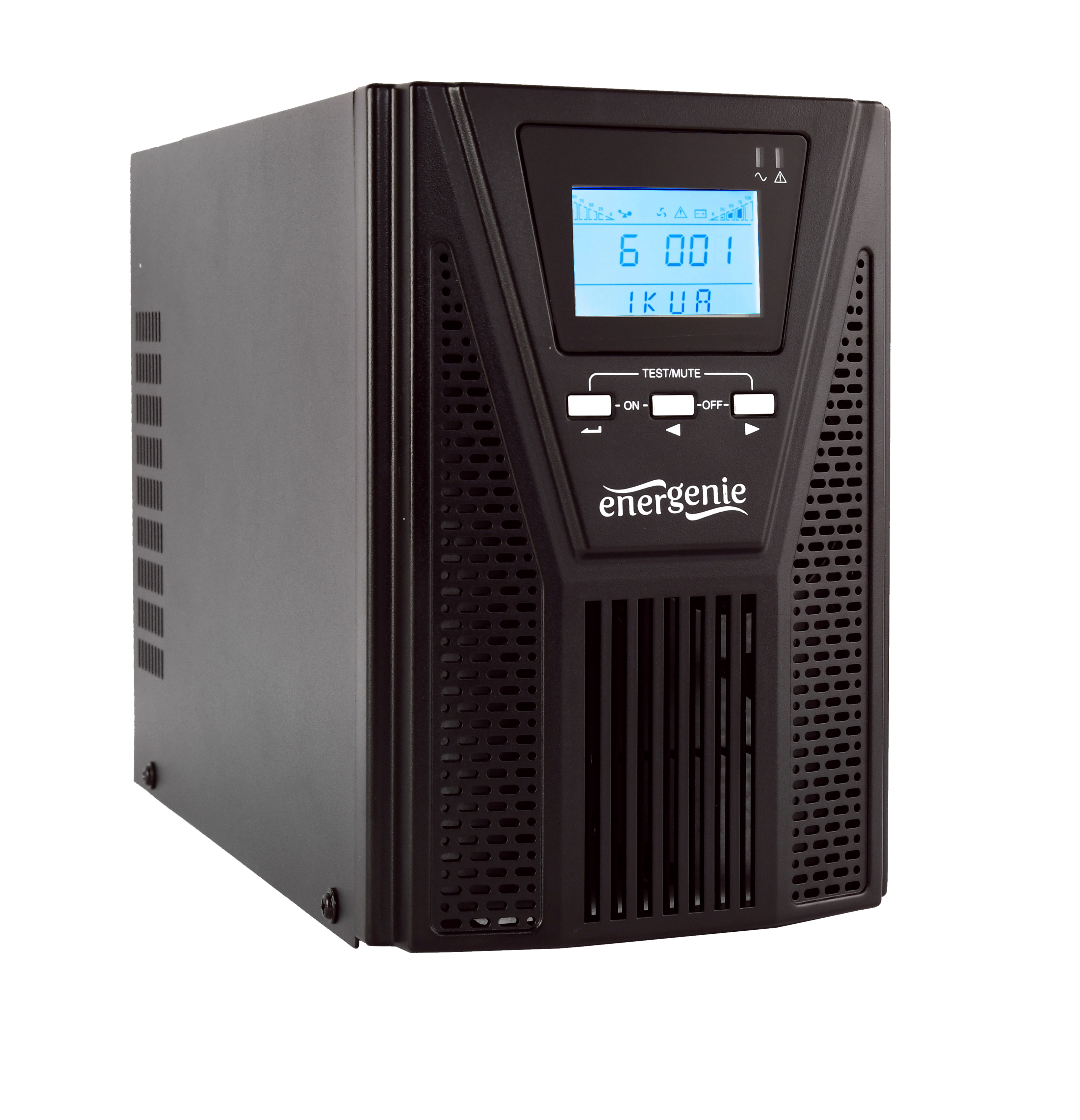

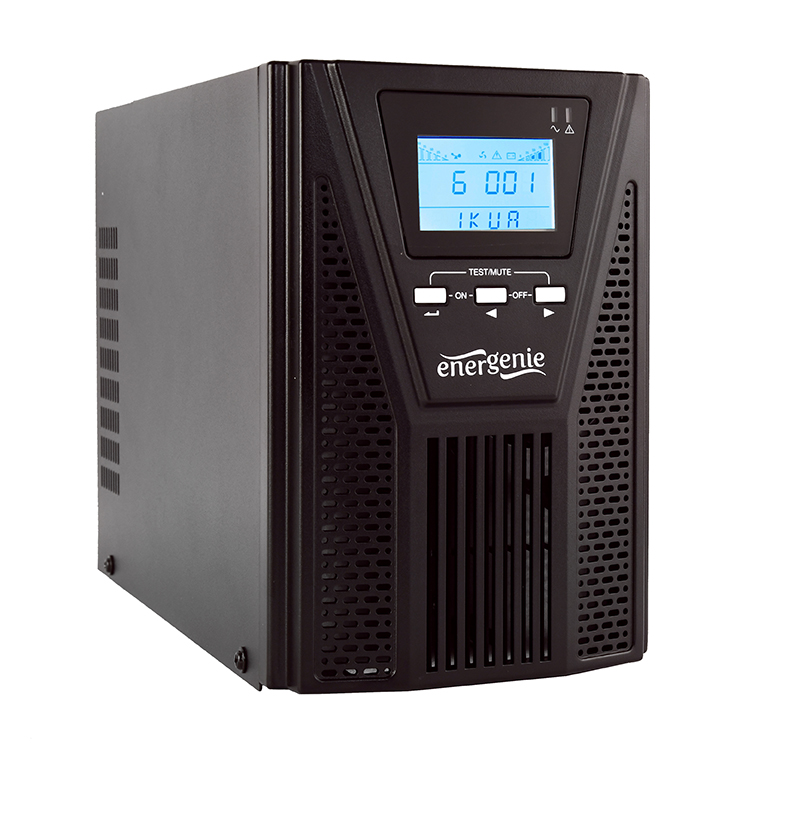

LCD display
Short circuit protection
Compatible with power generators of any brand
Overload, surge, spike and lightning protection
Audible and visual alarms
Overcharge and overdischarge protection

UPS type: online, pure sine wave
Input: 220V AC ± 25%, 50Hz / 60Hz ± 10%
Output: 220V AC ± 1%, 50Hz / 60Hz ± 0.5% (on battery)
Output power factor: > 0.99
Inverter output efficiency (resistive load): 85%, any load type is allowed
Switching time: zero
Backup time: 8...20 mins (depends on the load)
Battery: 151 x 65 x 95 mm, sealed lead-acid 12 V / 9 Ah / 2.35 kg x 2 pcs, 24VDC
Charge time: 90% capacity restored in 3 hours
External battery connectors: yes

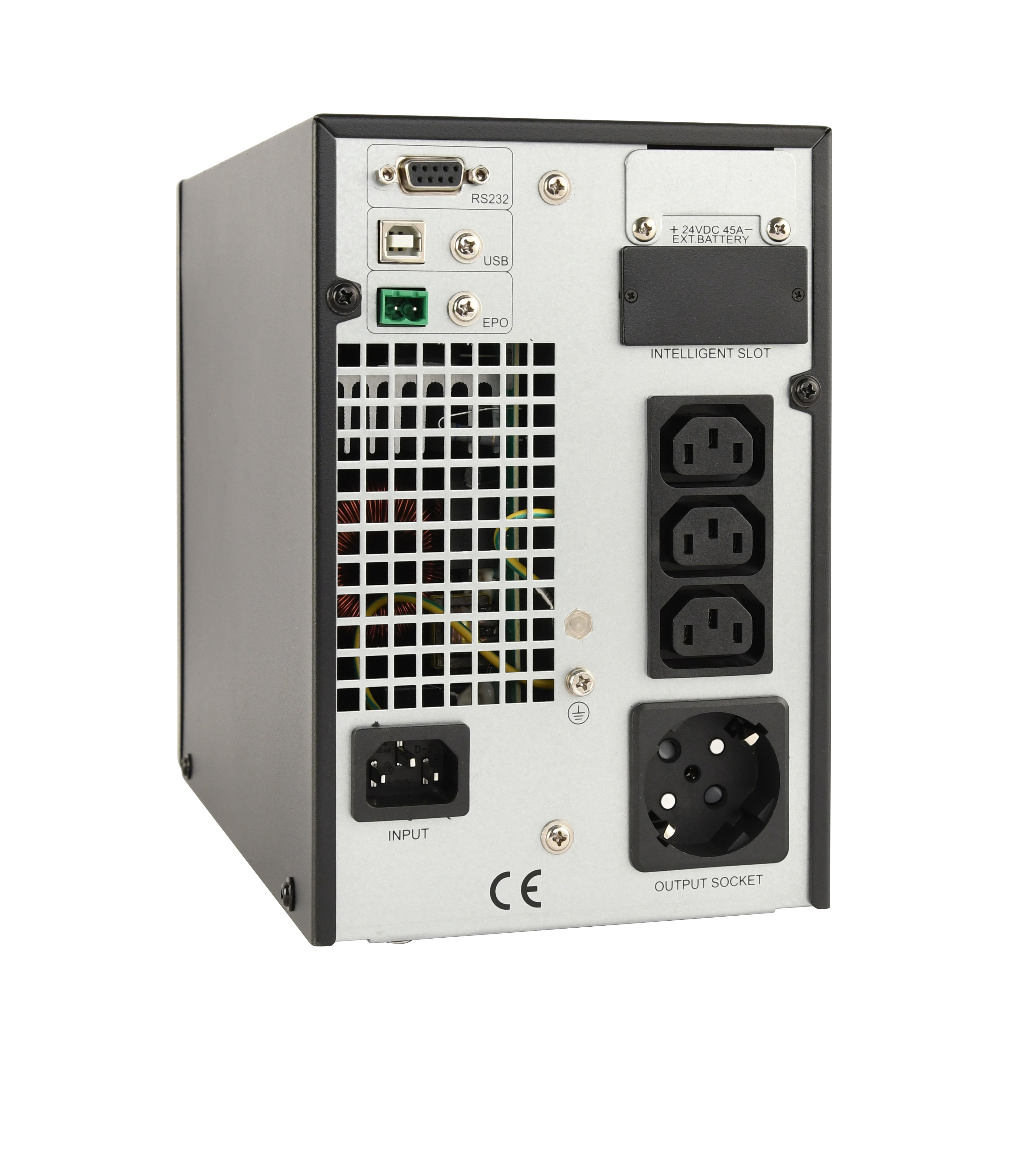

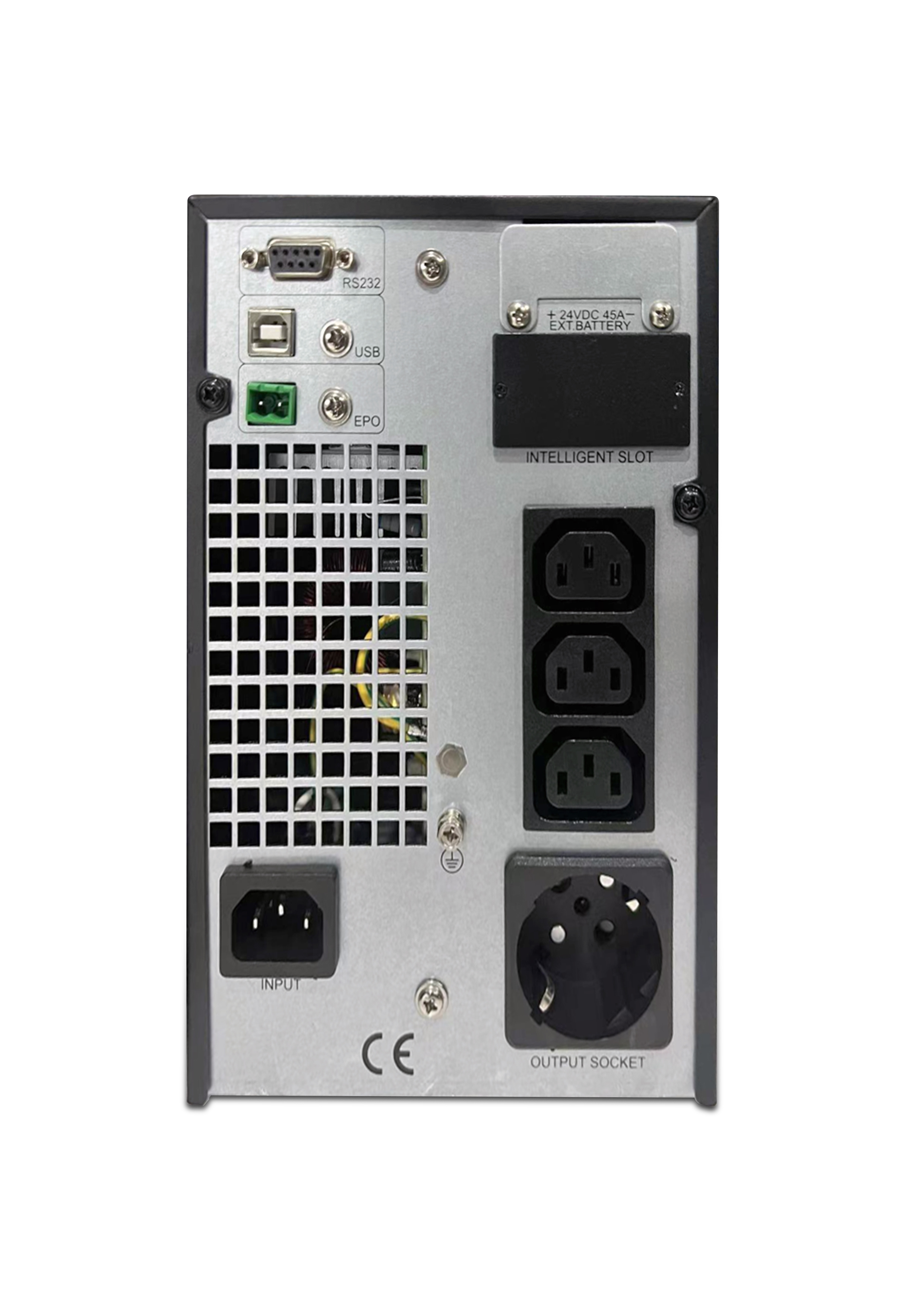

Sockets: input IEC C14, outputs: 1x schuko sockets + 3x IEC sockets
Interface communication: USB; optional slots: RS485 / dry contacts / SNMP
Operating conditions: 0°C~40°C, at humidity 10~90%RH non condensing
Noise: < 45 dB (at 1 meter distance)
Power: 1000 VA (900 W)
Dimensions: 144 x 312 x 216 mm
Product weight: 11 kg
"Cold-start" function

In order to work correclty, the connected load should be at least 5% of the maximum capacity of the UPS. For example, a 700 W UPS needs at least a connected load of 35 W to work.

Helpdesk Email helpdesk@gembird.nl (Monday to Friday from 9:00 AM to 5:00 PM (NL time) excluding holidays)

manual old EG-UPS-UPSO-1000-3000 series full-text user manual (2512 kb)

manual Extended manual (2512 kb)

manual (3332 kb)


EG-UPSO-1000
Q: How to activate the ECO mode? Where is the ECO function?
A: You can set it via the Iservice Tool
Q: When I press the OFF button, the UPS just goes to the STANDBY mode and the fan continues spinning producing much noise. The manual states that there should be the SHUTDOWN mode. So, how to shut it down completely without disconnecting it from the mains?
A: It can only be switched to bypass or standby, and then the mains input is disconnected to completely shut down.
Q: Each button pressing produces a loud beep. How to turn that beeping off?
A: Disconnect the mains input and switch the machine to battery mode. Then press and hold the first and third keys in battery mode for more than 1 second
Q: Is it possible to make the UPS to shutdown when it has no load (so, when the only desktop connected to it is turned off)?
A: There is no such function for the time being
Package contents
UPS
Power cord
USB cable
Software CD
Spare fuse
Packing details
Q'ty in crtn, pcs1
Crtn volume, CUM0.0320256
Crtn weight, kgs10.6
Individual package size LxWxH:400x240x320 mm
Carton size LxWxH:417x240x320 mm
Country of originCN
Barcode8716309124836
Customs code8504408590
Packagingbrown carton box
