Uninterruptable power supply with pure sine wave output
USB interface
Automatic AC voltage regulation (AVR)
Intelligent overload- and short-circuit protection
Audible and visual alarms

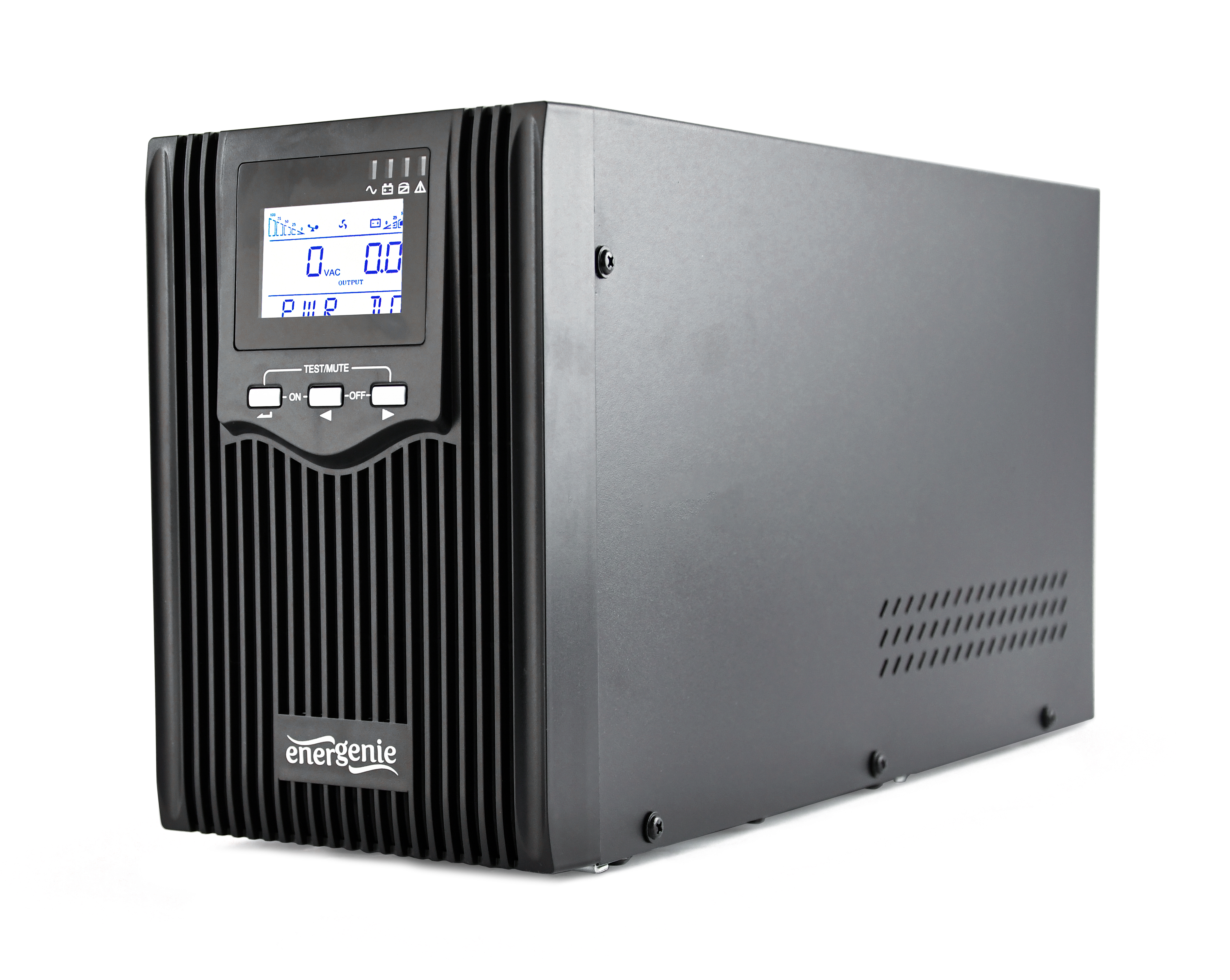

LCD display and LED status indication
Internal battery with overcharge and over-discharge protection

Type: line interactive with pure sine wave
Waveform: pure sine, 5% distortion at linear load, PF > 0.8
Input: AC 220V±25%, 50Hz/60Hz ±10%
Output: AC 220V±10%, 50Hz/60Hz ±1% (AC 220V±10% at inverter mode)
Switching time: up to 10 ms typically
Backup time: 10...30 mins (depends on the load)
Battery: 151 x 65 x 94 mm, sealed lead-acid 12V/9Ah, F2 terminals x 3 pcs
Charge time: up to 90% after 6-8 hours

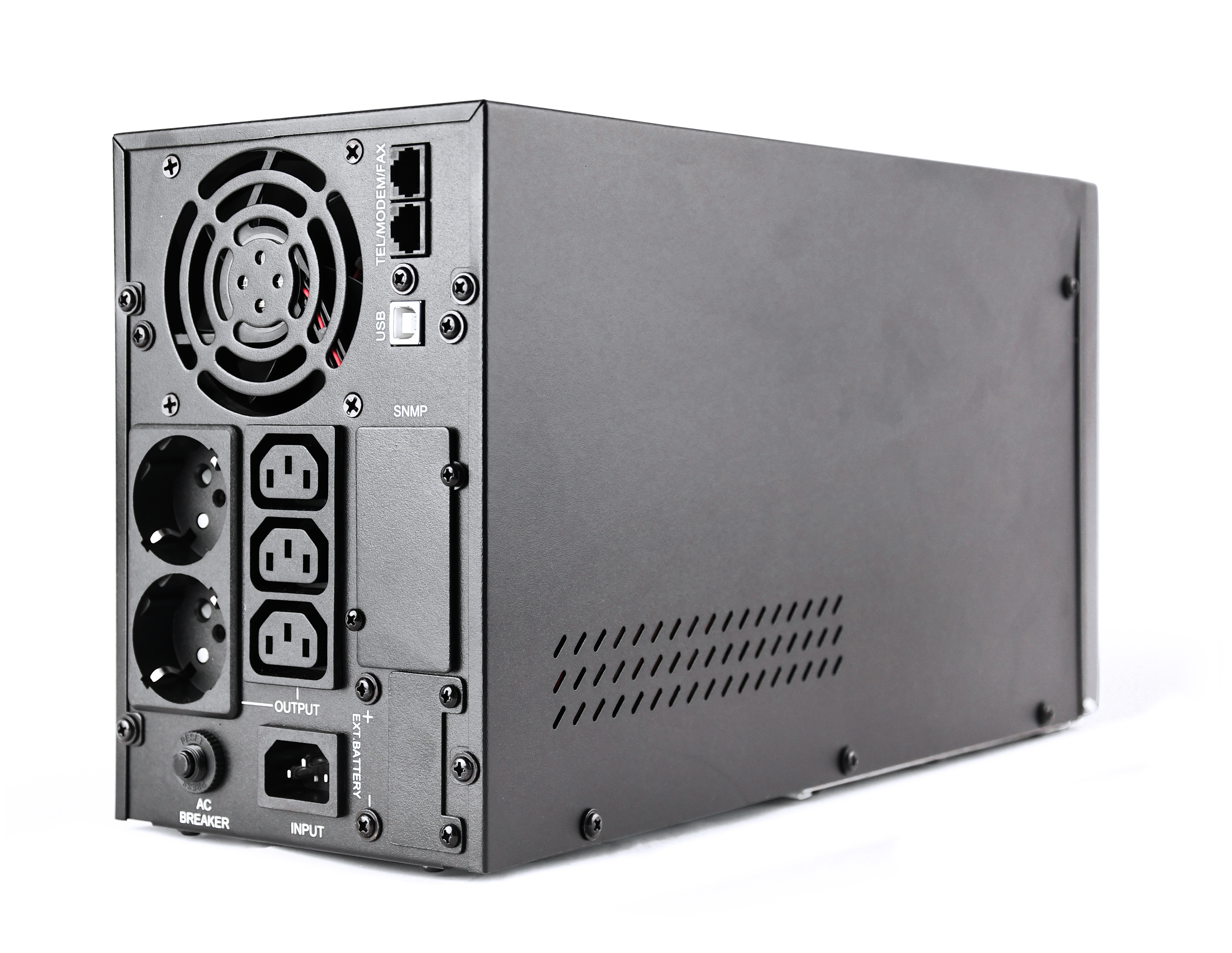

Sockets: C14 input, outputs: 3x IEC C13, 2x Schuko
Interface communication: USB + RJ45; optional slots: dry contacts / SNMP
Operating conditions: 0°C~40°C, at humidity 10~90%RH non condensing
Power: 2000VA (1600 W)
Charging current: 1 A (default)
Noise: < 50 dB at 1 m distance
Dimensions: 144 x 410 x 215 mm
Product weight: 18.5 kg
"Cold-start" function

In order to work correclty, the connected load should be at least 5% of the maximum capacity of the UPS. For example, a 700 W UPS needs at least a connected load of 35 W to work.
